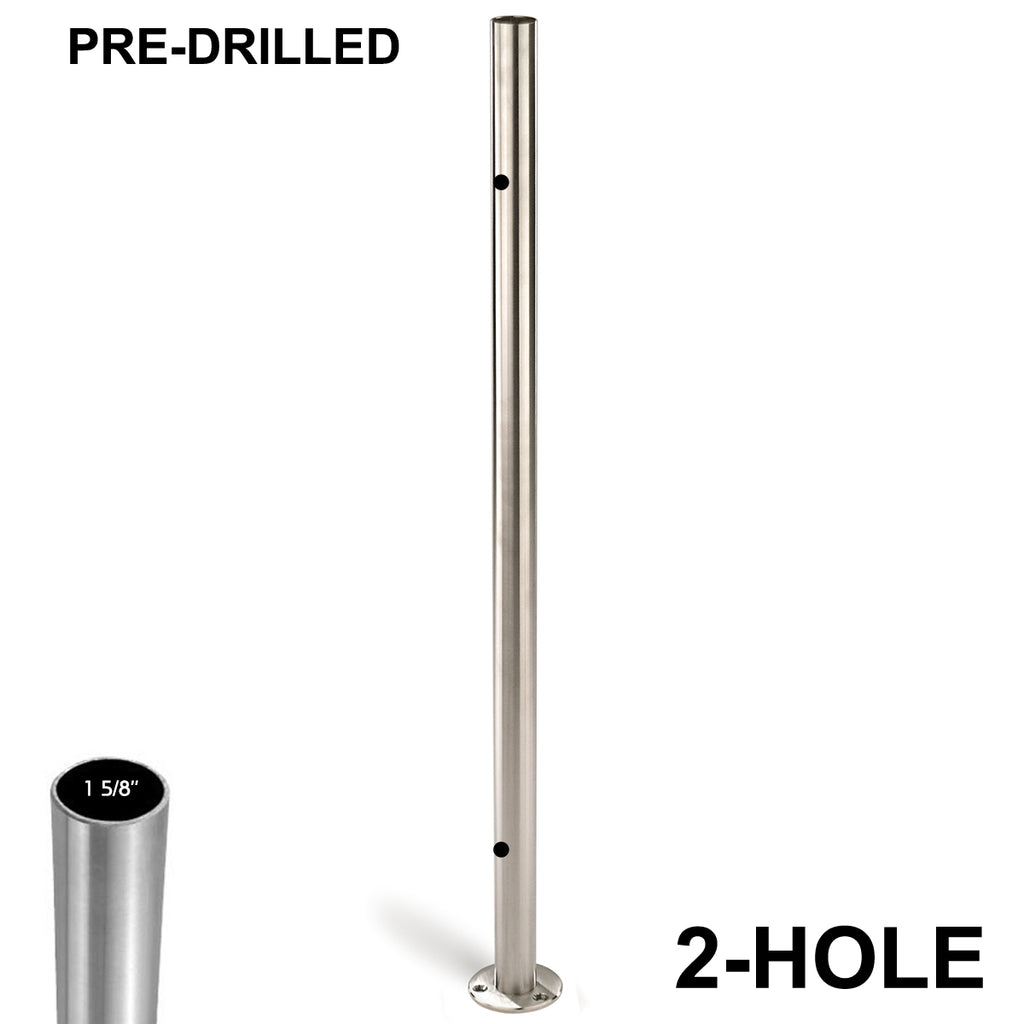

E0042-2 Pre-Drilled 2 Holes/End Stainless Steel Newel Post

The E0042-2 Pre-Drilled 2 Holes/End Stainless Steel Newel Post as 2 threaded holes (M8-8mm), it's normally used as starting/ending post on glass balconies. This newel post pre-drilled on 1 side so that you can easily insert 2 glass clamps.

NO THREADED INSERTS OR RIVETING TOOL NEEDED!

• Typically used as a start/end post
• Available for interior and exterior use
• For use with glass infill panels - Holes made on one side only

• Newel Post for glass and 2 Glass Clamps
• Satin/Brushed finish
• 39-3/8" Height - 1-5/8" diameter (42.4mm) - 3-7/8" welded bottom flange
• Flange has three 5/16" mounting holes
• Thickness: 16 gauge  (5/64")

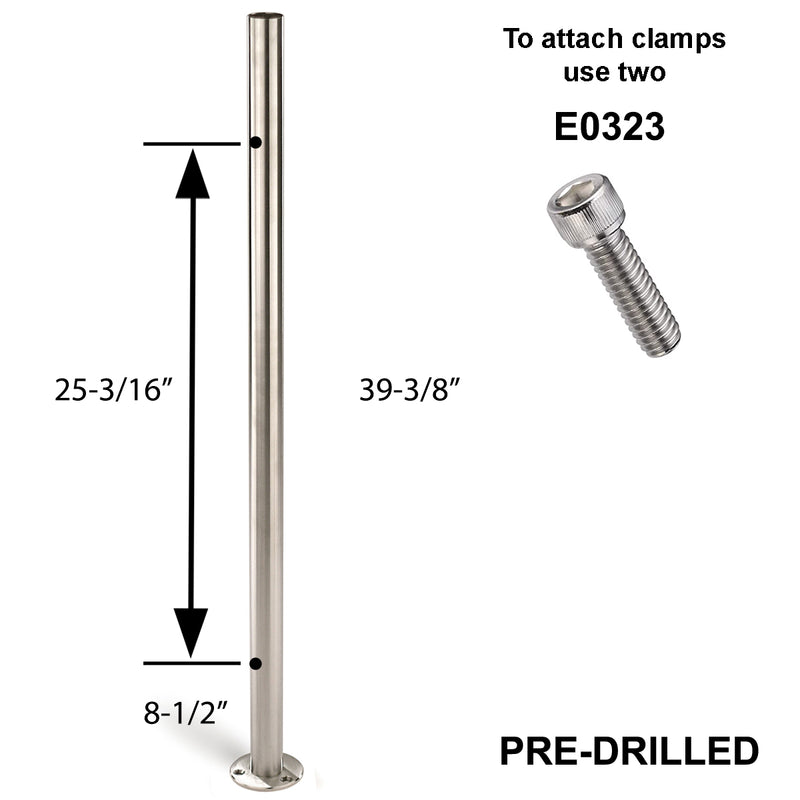

• Bottom hole: 8-1/2" from floor
• Top hole: 33-11/16" from the floor
• Requires 2 screws E0323 to attach glass clamps (sold separately)
• Requires 2 Glass Clamps (sold separately)

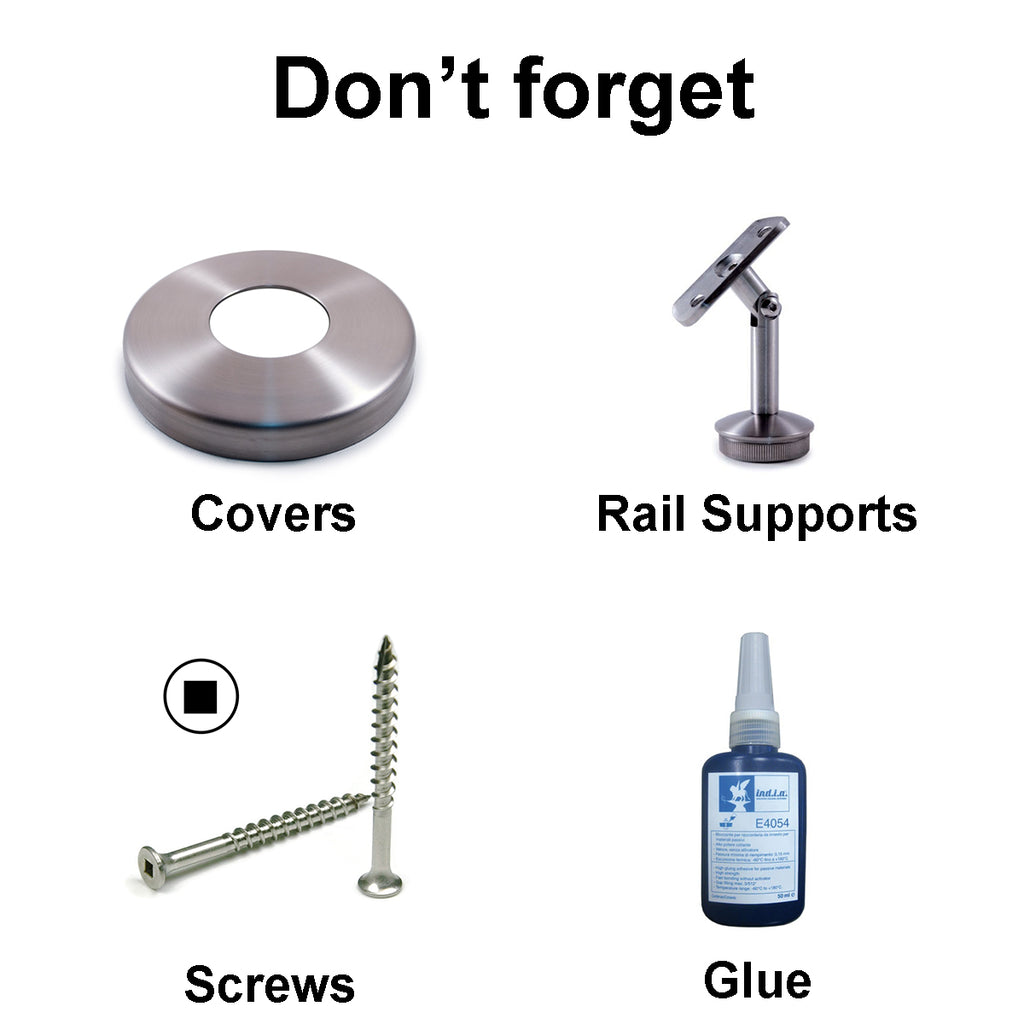

• Flange cover "Canopy - E020" (sold separately)

Posts are supplied with an open top for you to add the Handrail Support required for your project.

If you require different heights, number of holes or spacing's - we can manufacture it for you. Please contact us.

Caution: It is critical that the newel is attached securely in order for the staircase to comply with local building codes.
