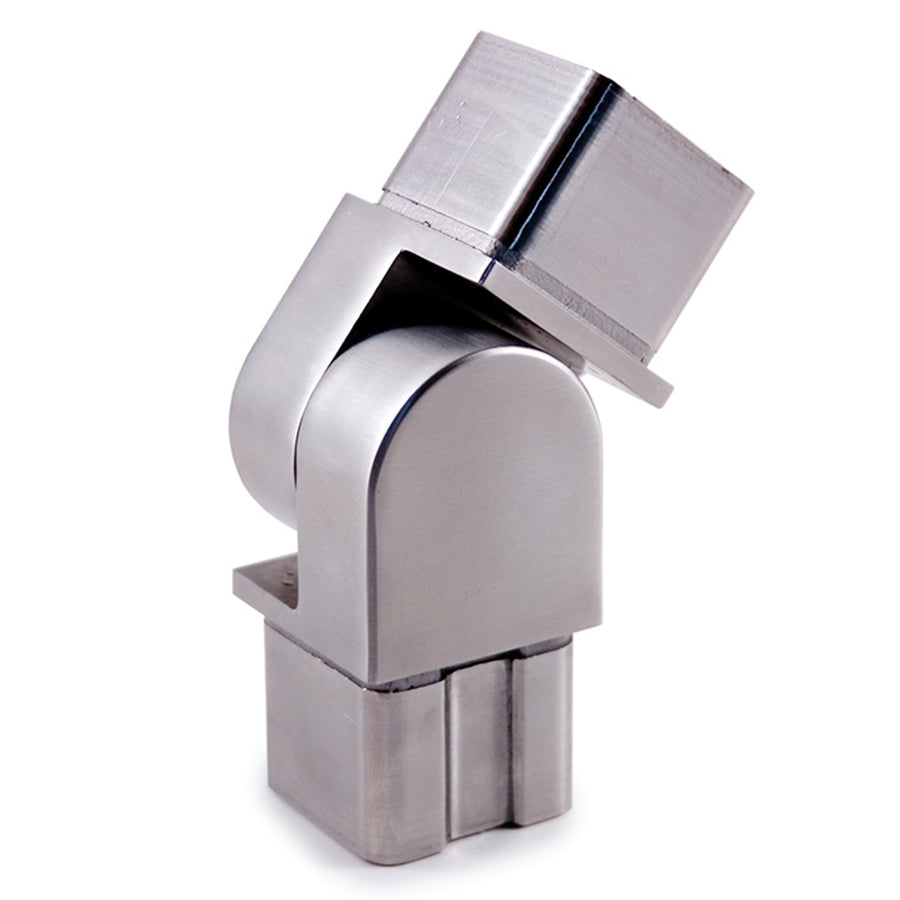

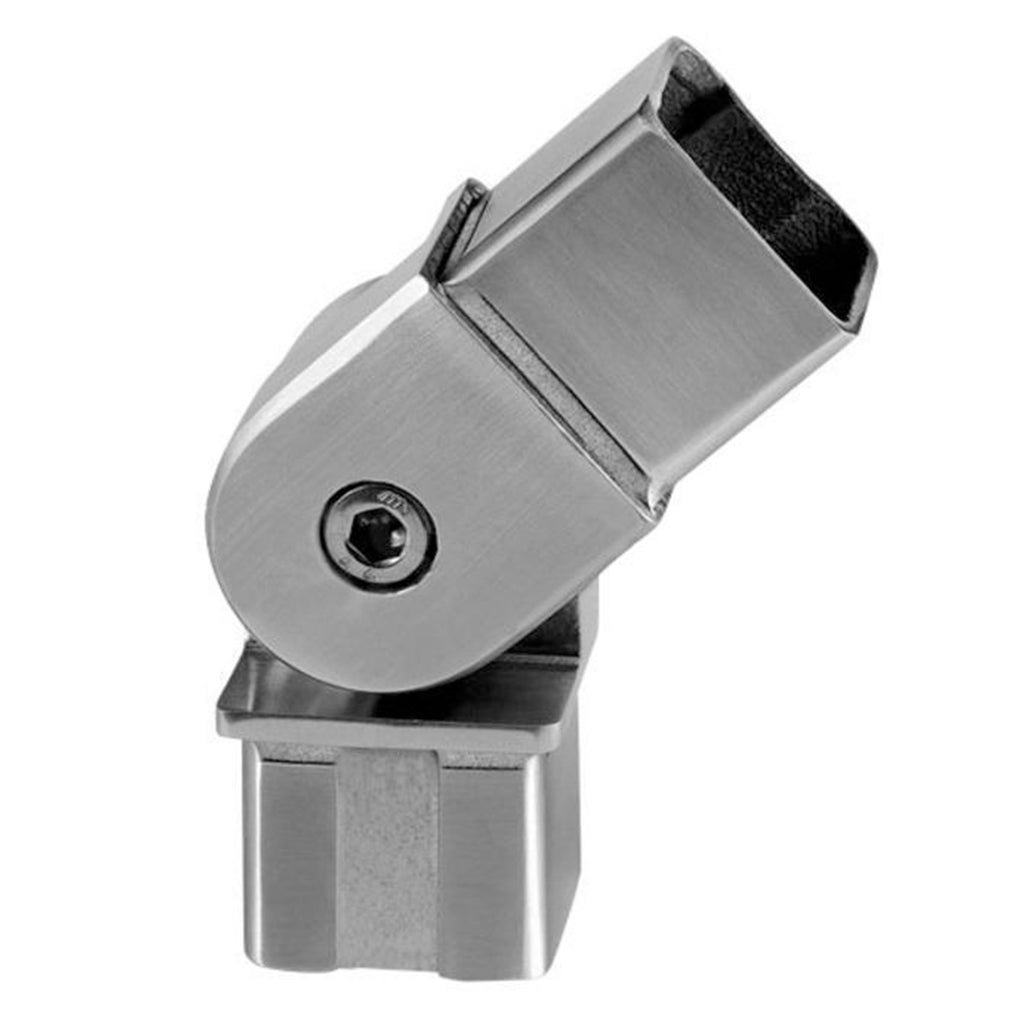

E4743 Pivotable Multi-angle Fitting Connector

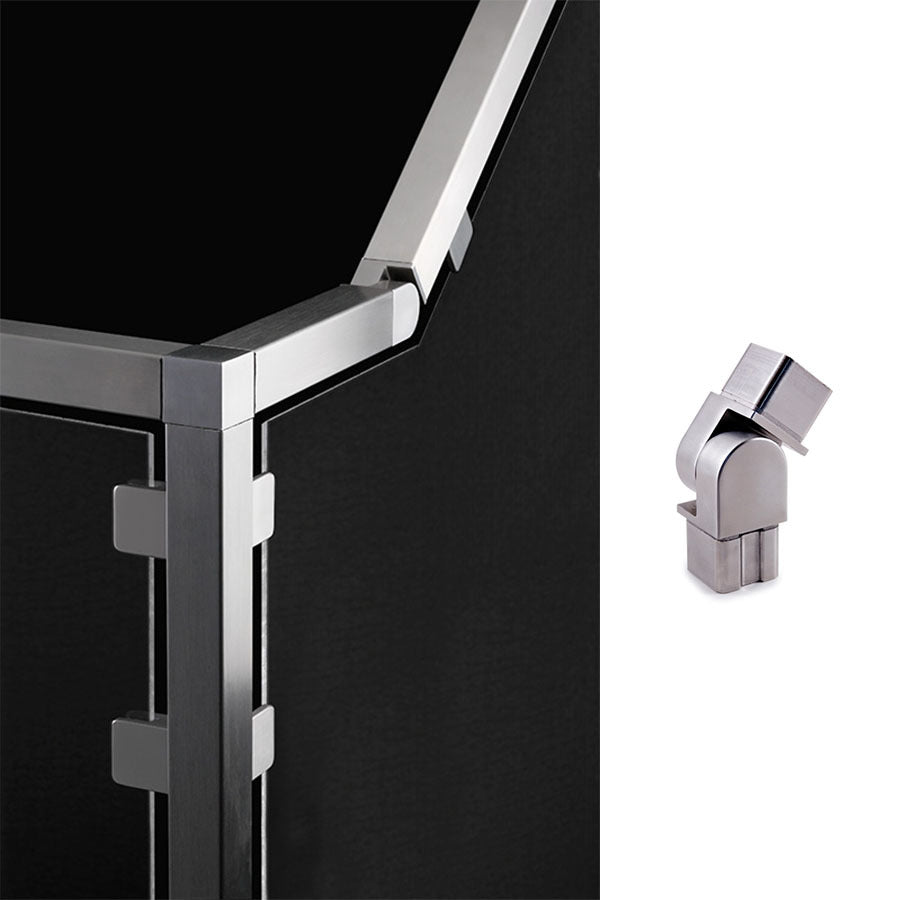

The E4743 Pivotable Multi-angle Fitting Connector is the most used and popular adjustable angle connector for square stainless steel handrail. Designed for a flush fitting to provide you with a simple and neat way to join tubes together with an adjustment of 90° in each direction.

• Made of AISI 316 Marine Grade Stainless Steel
• Cost effective alternative to welding
• Ideal for both interior and exterior use
• Fitts 1-9/16" x 1-9/16" (40mm) square stainless steel tube

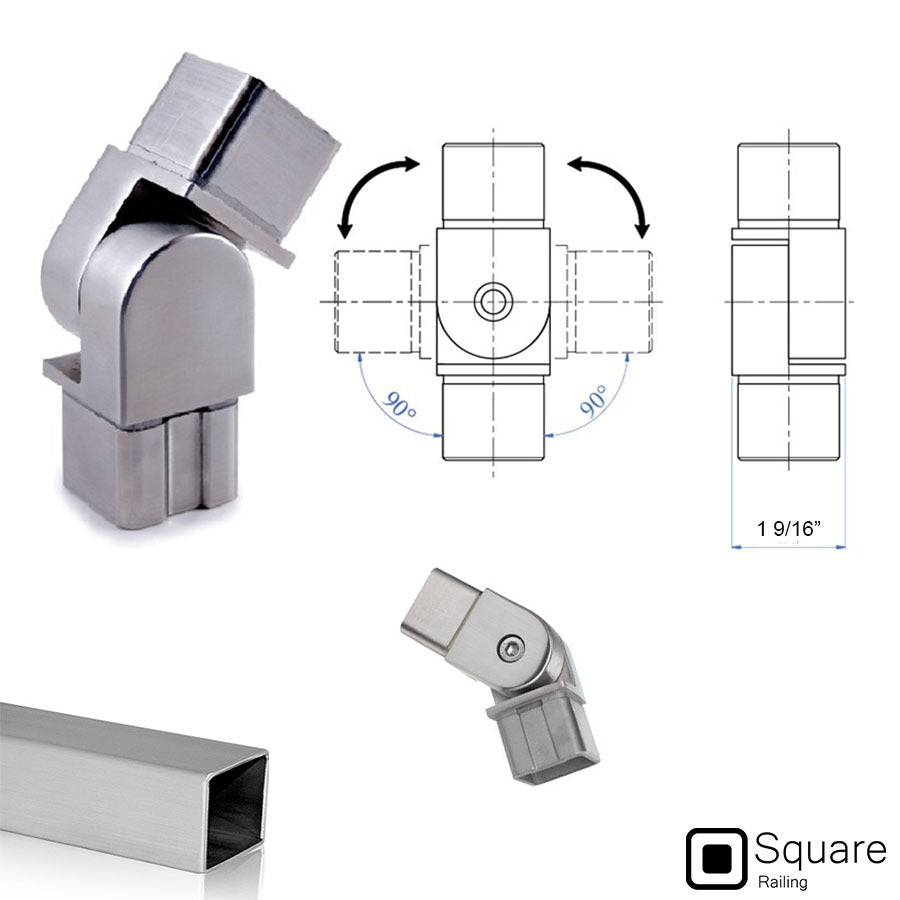

• Adjustment of 90° in each direction
• Length: 3-5/64" - Thickness: 5/64"

• Modern look - Ready to install - Safe and sturdy
• For permanent and strong connections, we recommend using our high strength stainless steel adhesive E4054

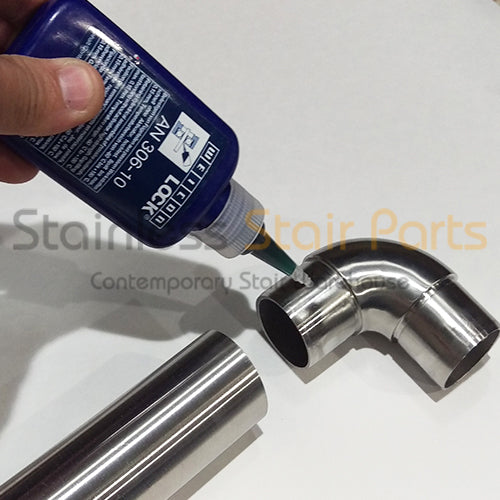

Installation is quick and easy, simply glue the ends with a high strength stainless steel adhesive and insert into your tube to the angle required, block oxygen flow and leave to set.
