Description

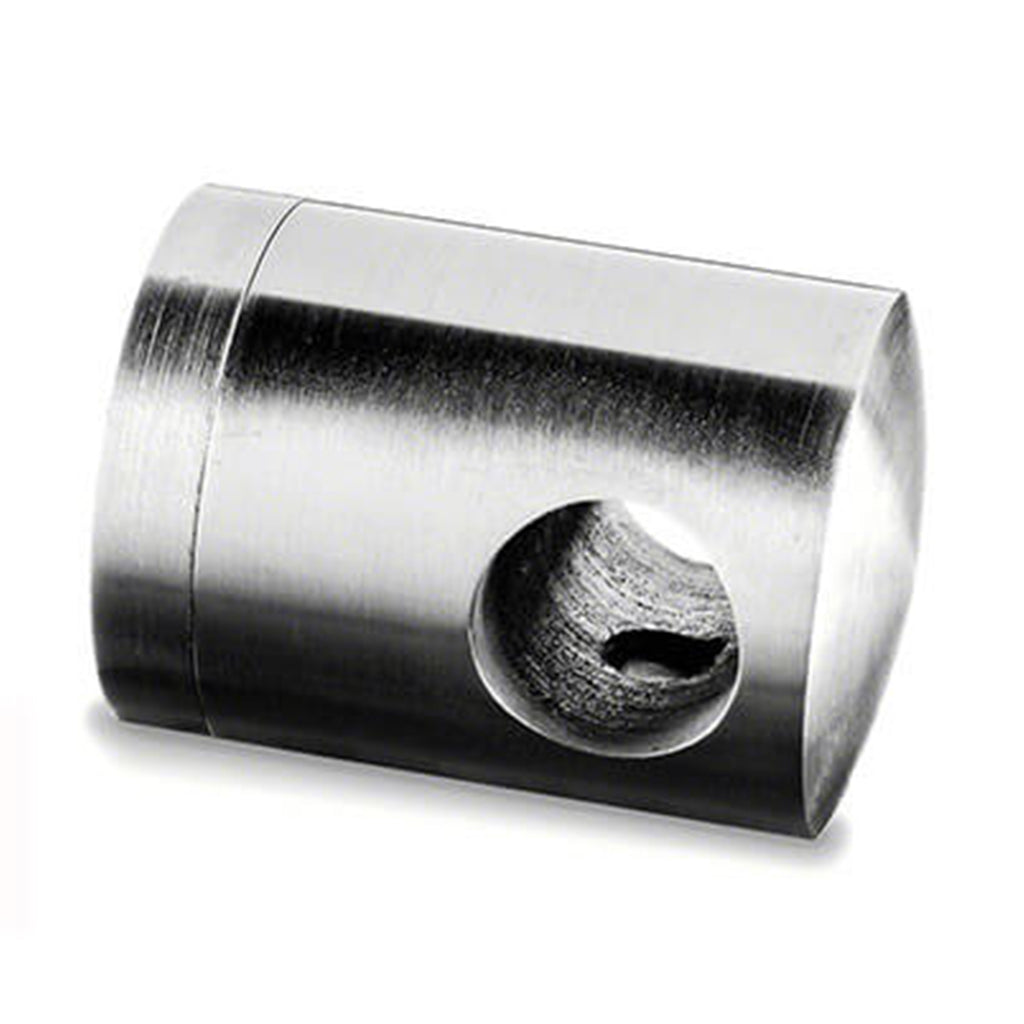

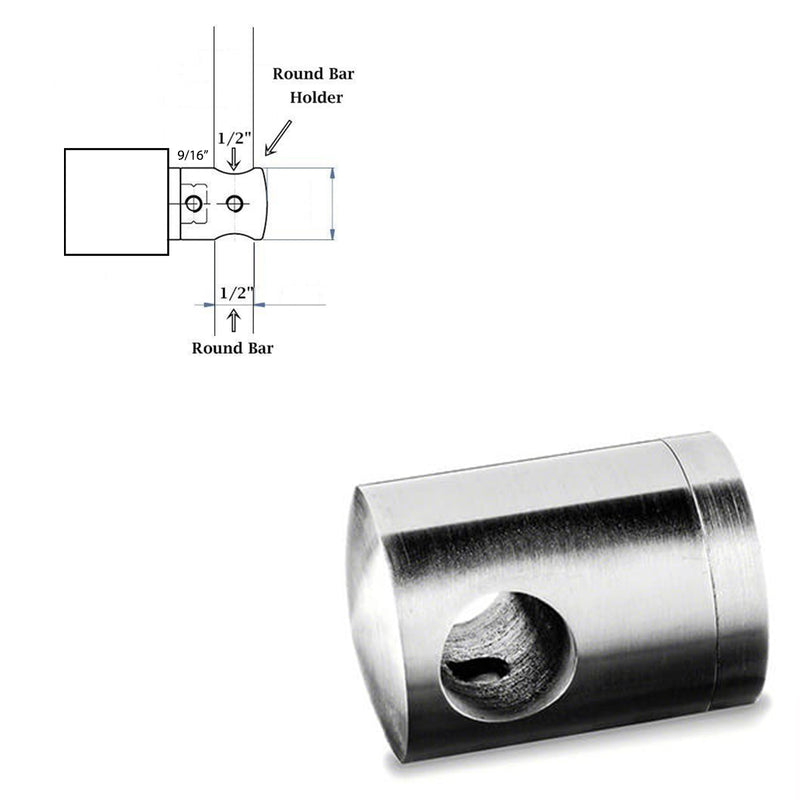

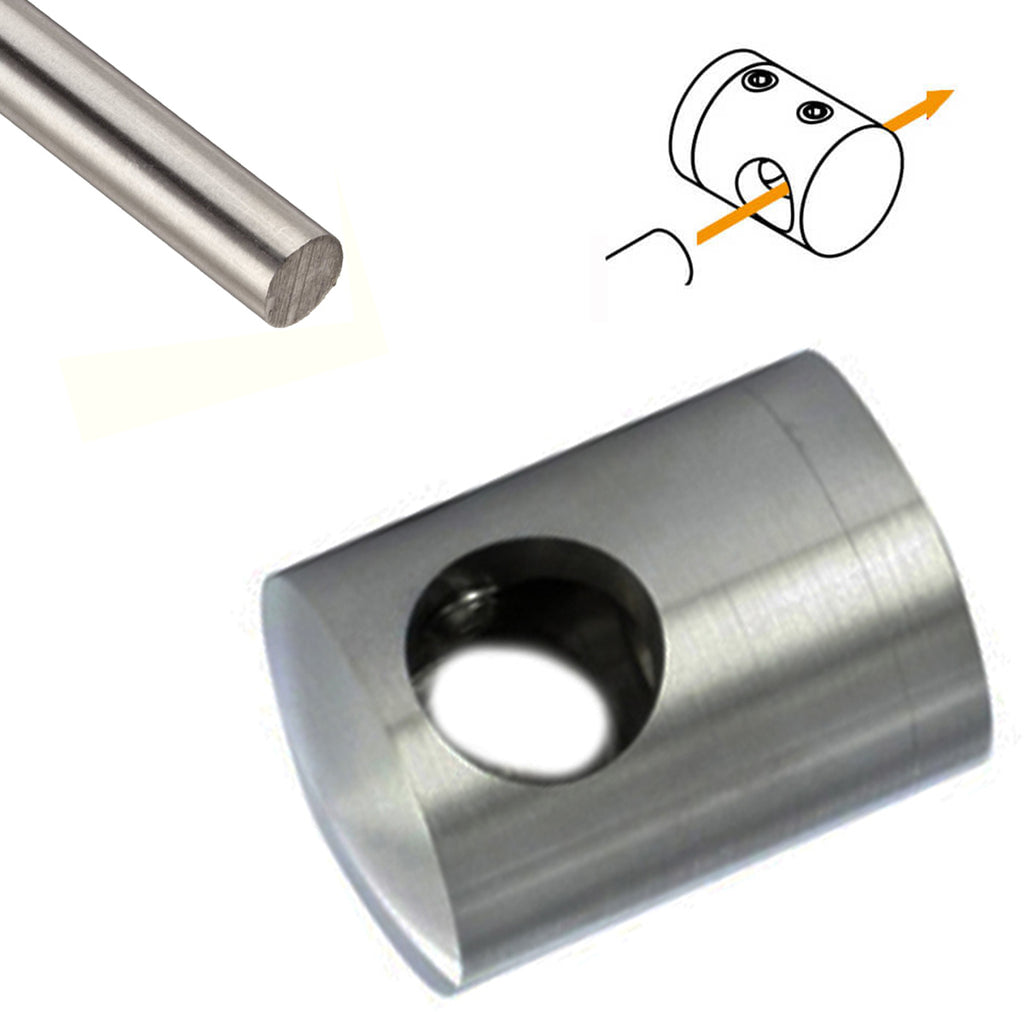

The E00692 Stainless Steel Round Bar Holder for Flat Surface will attach to any flat surface for example: Square newel posts, walls, ceiling, etc. The 1/2" round bar goes all the way through this bar holder. Installation is straightforward with the use of a drill, screws and hex head key.
- Designed to meet and hold our 1/2" stainless steel round bars
- Available for interior and exterior use

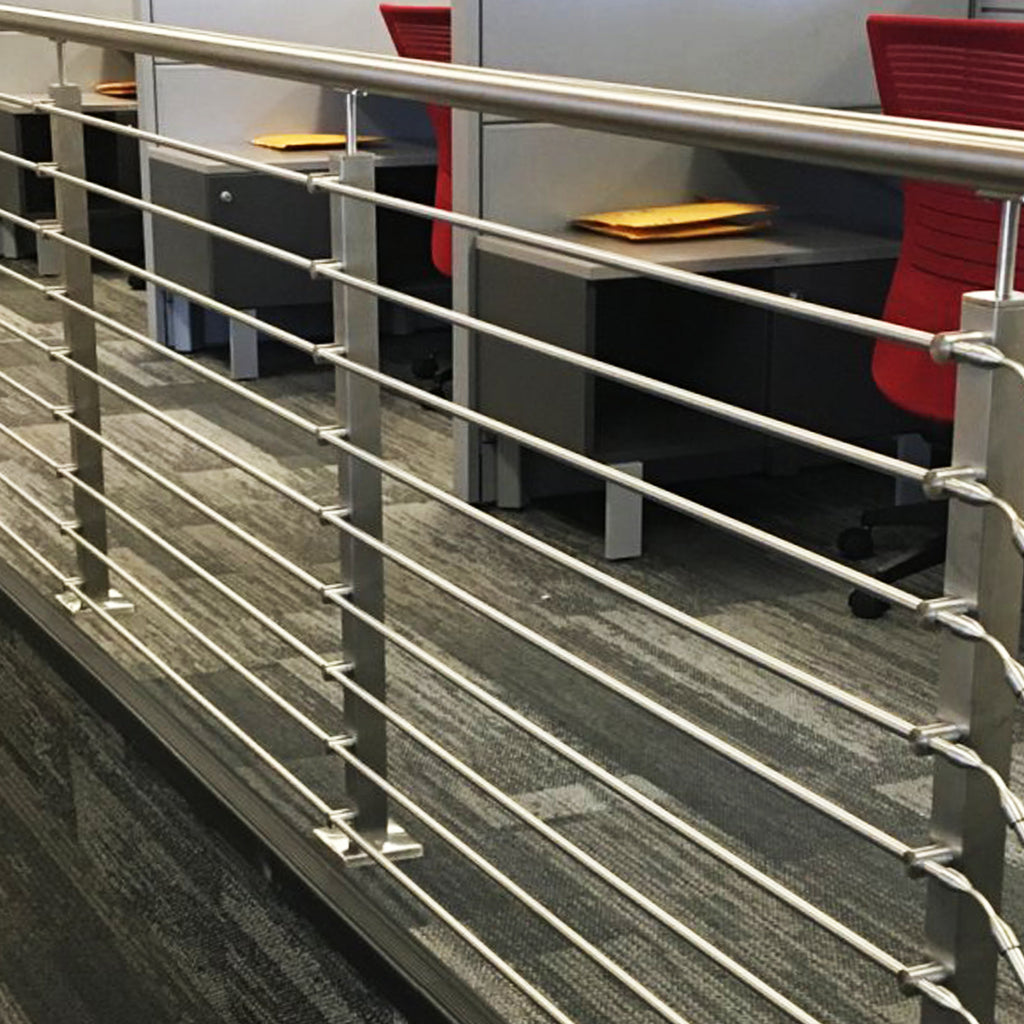

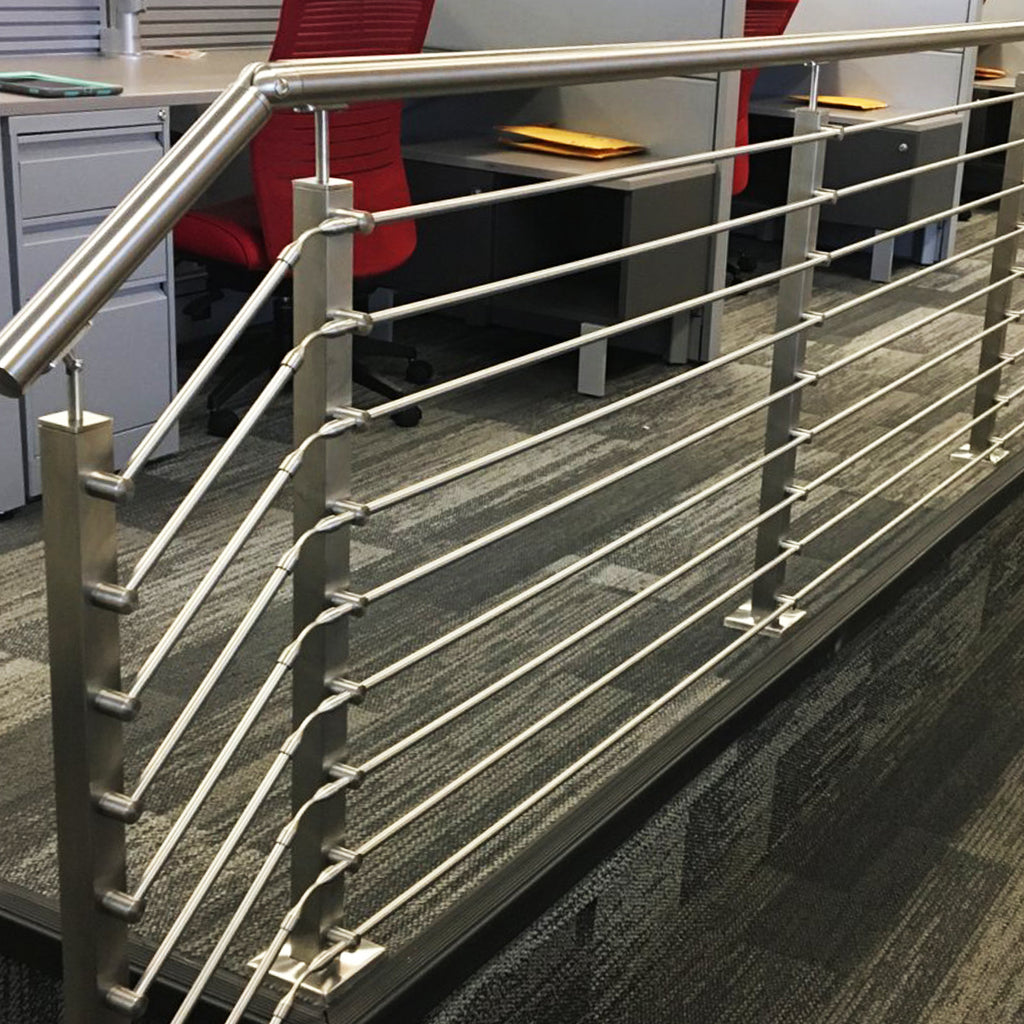

- Ideal for installation on flat surfaces or square balustrade posts
- 7/8" diameter - 1-3/16" Height
- 2 Hexagonal socket set screw
- Quick and easy to install
- Satin/Brushed finish
- Requires one E0385 screw to attach (Sold separately)
- Tighten with an Allen-style wrench ALW-2.5MM (Sold separately)

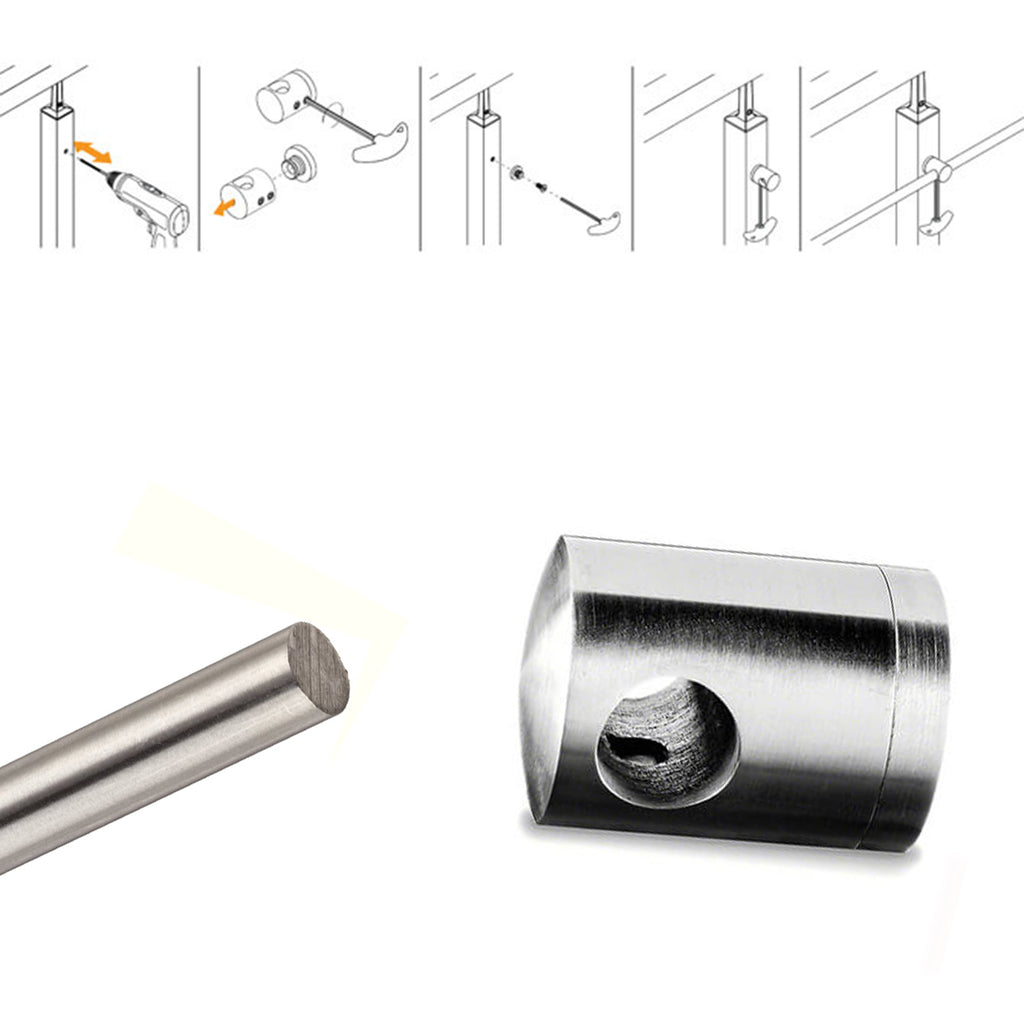

Installation:
- Mark hole position.
- Drill a 11/64" diameter hole.
- Tap hole with a M5 tap if needed.
- If attaching to wall or wood use wood screws.
- Attach flat bar holder base to surface.
- Insert rod into bar holder.
- Tighten hex head set screws to secure bar holder and rods.
If you can’t find the product you are looking for, need additional assistance or have any questions, please contact our sales team at (844) 424-0112 or e-mail us [email protected]
We are happy to answer any questions you may have about our stair products, installation or help you place an order.
