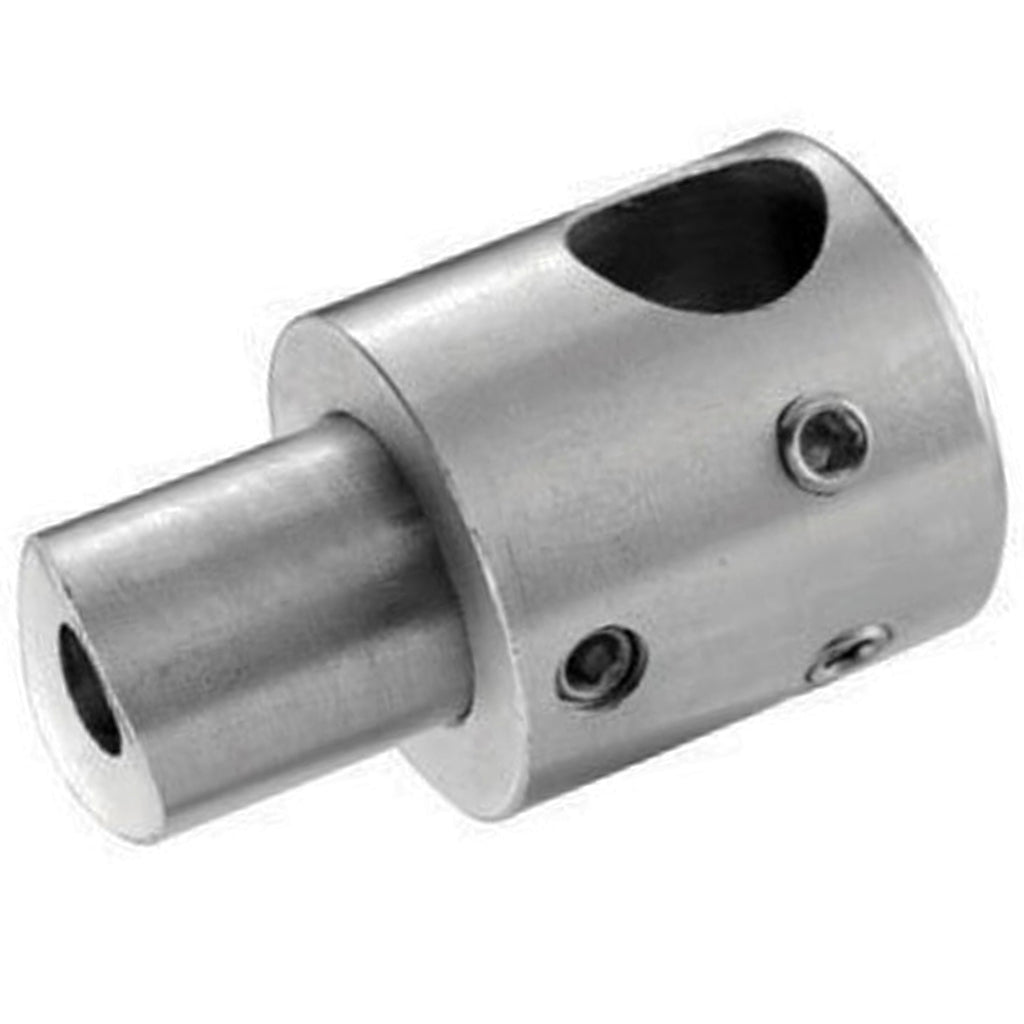

E006 Two-Piece Round Bar Holder For Round Newel Post

The E006 Two-Piece Round Bar Holder For Round Newel Post will attach our 1/2" stainless steel round bar to the side of a 1-5/8" round newel post. The round bar goes all the way through this holder.

• Designed to hold our 1/2" stainless steel round bars
• Ideal for installation on 1-5/8" Round Newel Posts

• Available for interior and exterior use

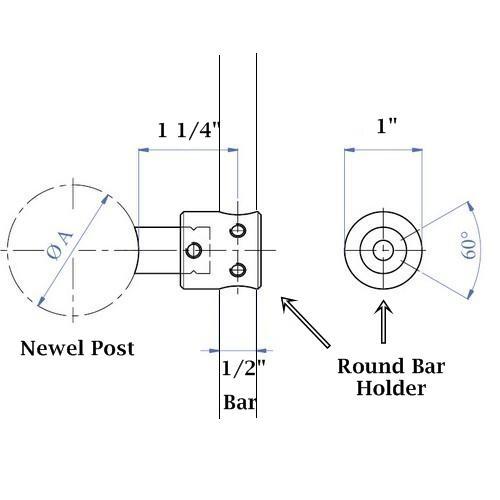

• 1" Diameter - 1-5/8" Height - 3 Hexagonal socket set screw
• Quick and easy to install - Satin/Brushed finish
• Drill required for installation

Installation:

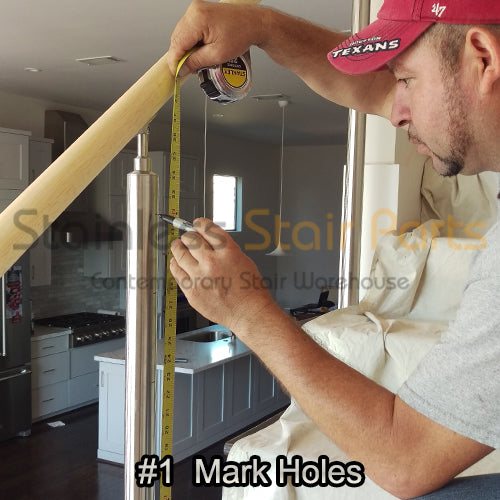

1. Mark hole position.

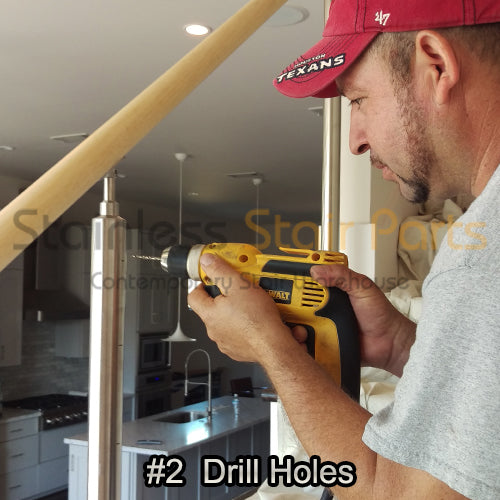

2. Drill a 11/64" diameter hole.

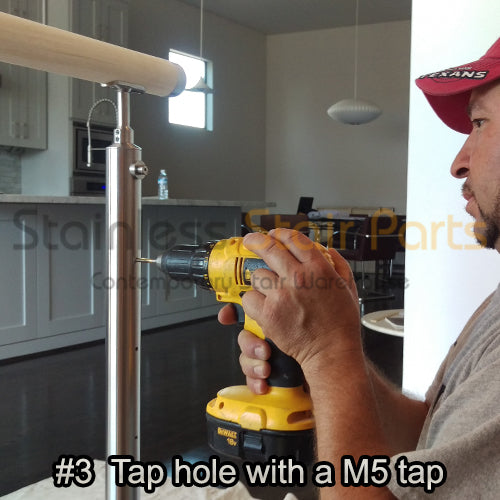

3. Tap hole with a M5 tap.

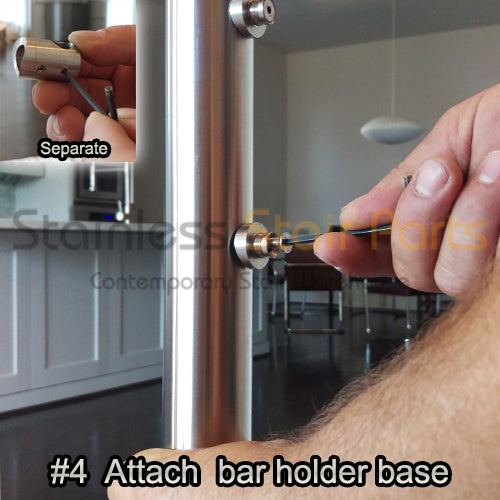

4. Attach round bar holder base to surface.

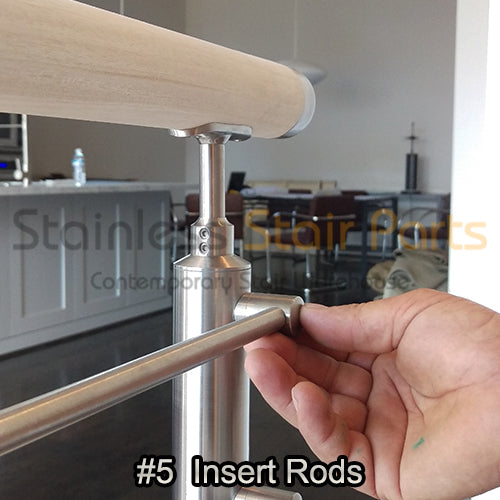

5. Insert rod into bar holder.

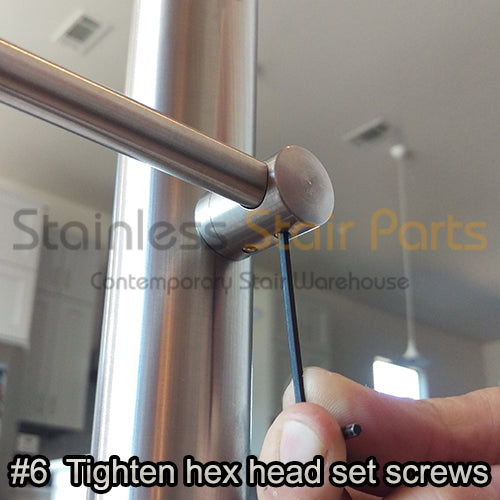

6. Tighten hex head set screws to secure bar holder and rods.
