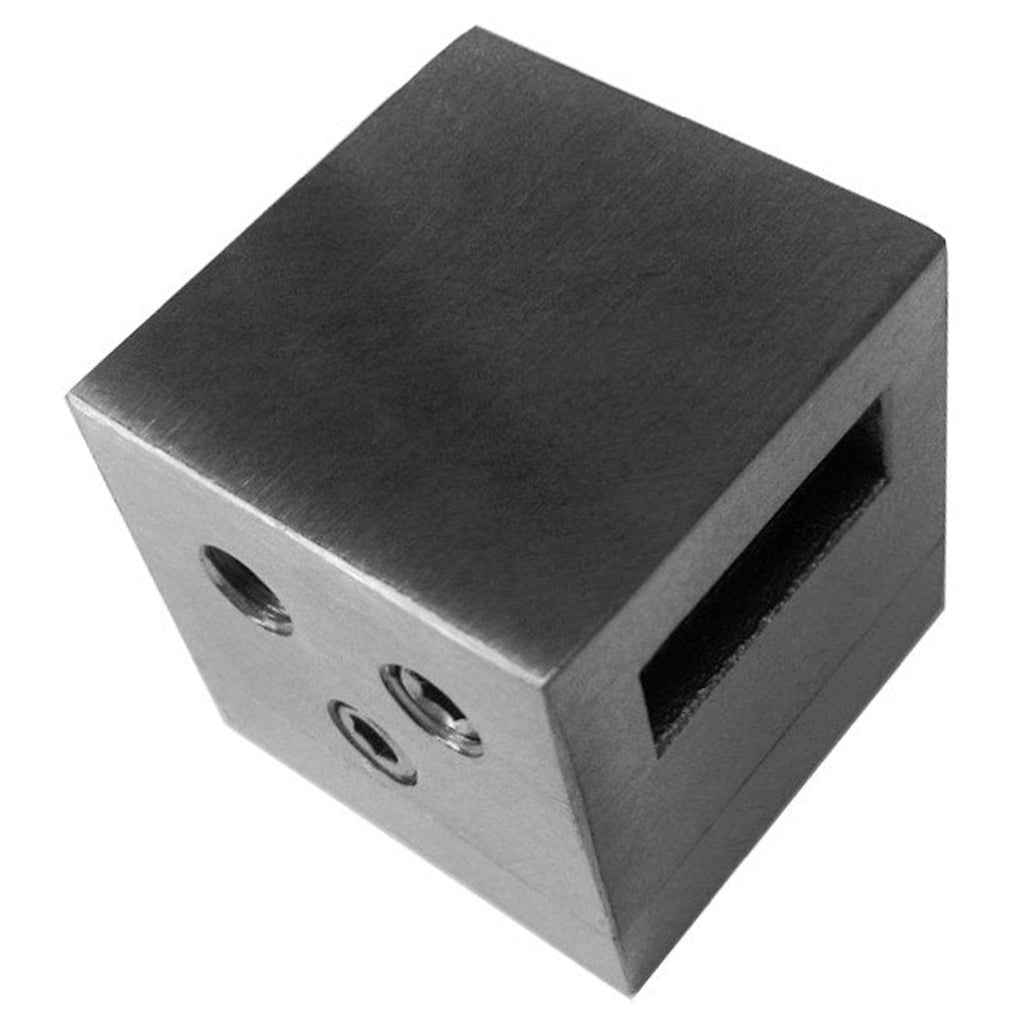

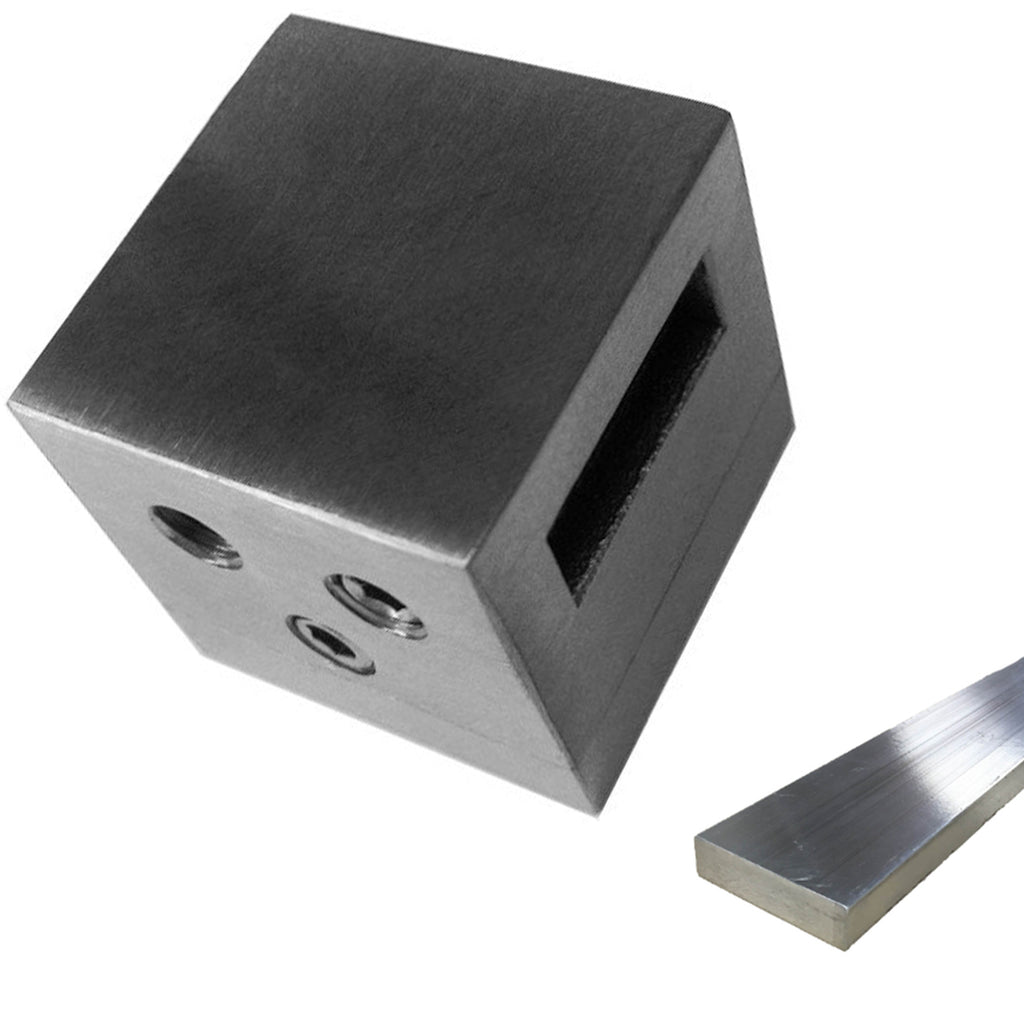

The E036010 Pass Through Flat Bar Holder for Flat Surface will attach our stainless steel flat bar to any flat surface, square newel post or walls. The flat bar EP15X5 goes all the way through this holder.
Installation is straightforward with the use of a drill, screws and hex head key.
- Designed to meet and hold EP15X5 stainless steel bars as balustrade infill
- Made of AISI 316 Marine Grade Stainless Steel
- Ideal for both interior and exterior use

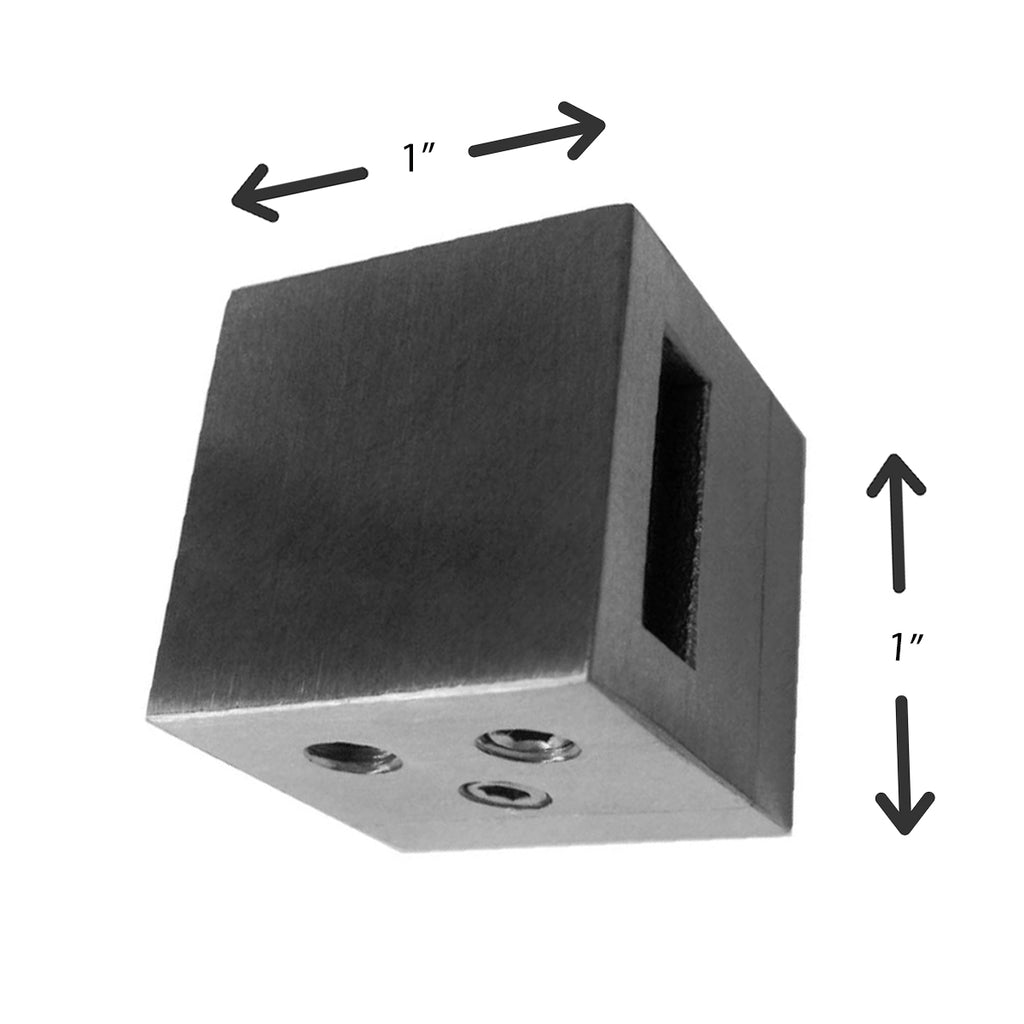

- 1" Height - 1" Width
- 2 Hexagonal socket set screw
- Satin/Brushed finish
- Drill required for installation
- Tighten with an Allen-style wrench ALW-2.5MM (Sold separately)
Installation:
- Mark hole position.
- Drill a 11/64" diameter hole.
- Tap hole with a M5 tap if needed.
- If attaching to wall or wood use wood screws.
- Attach flat bar holder base to surface.
- Insert bar into bar holder.
- Tighten hex head set screws to secure bar holder and rods.
