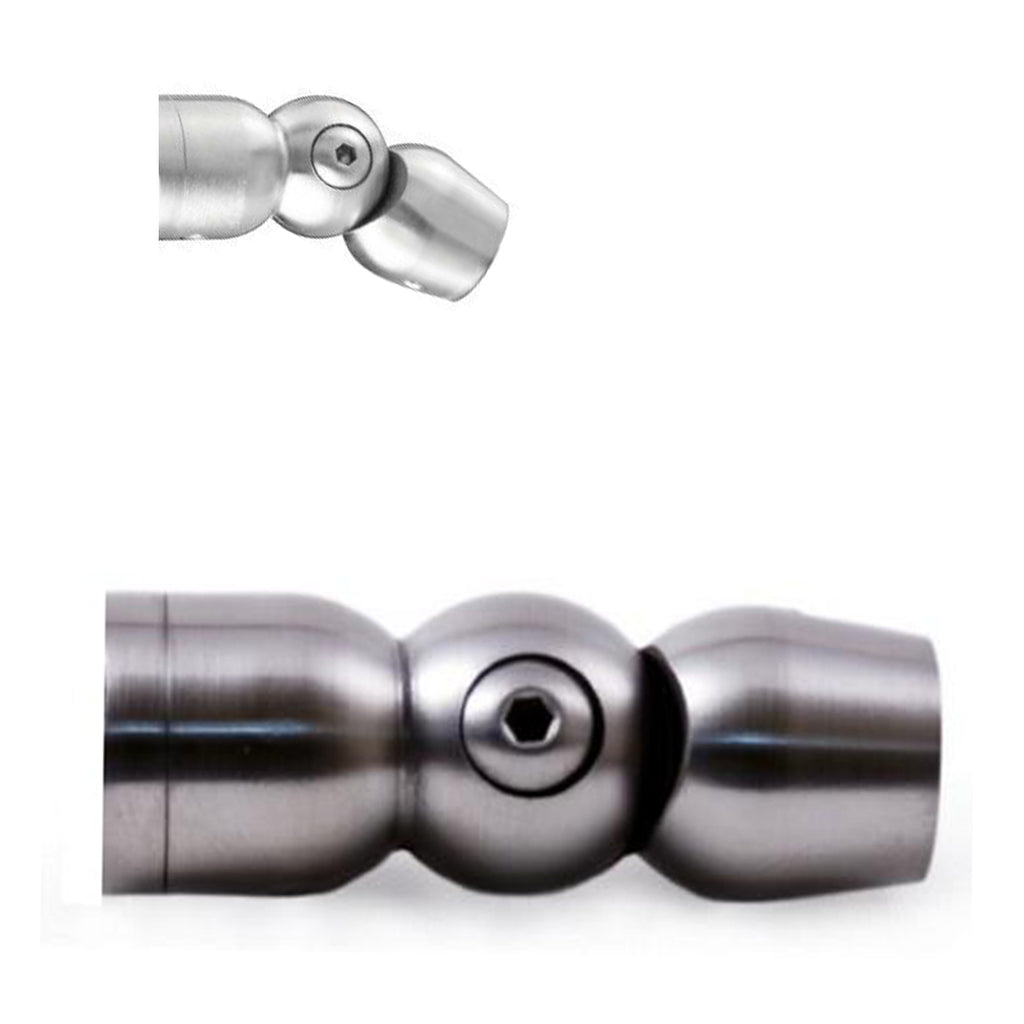

E00791 Pivotable Round Bar Connector For Flat Surface

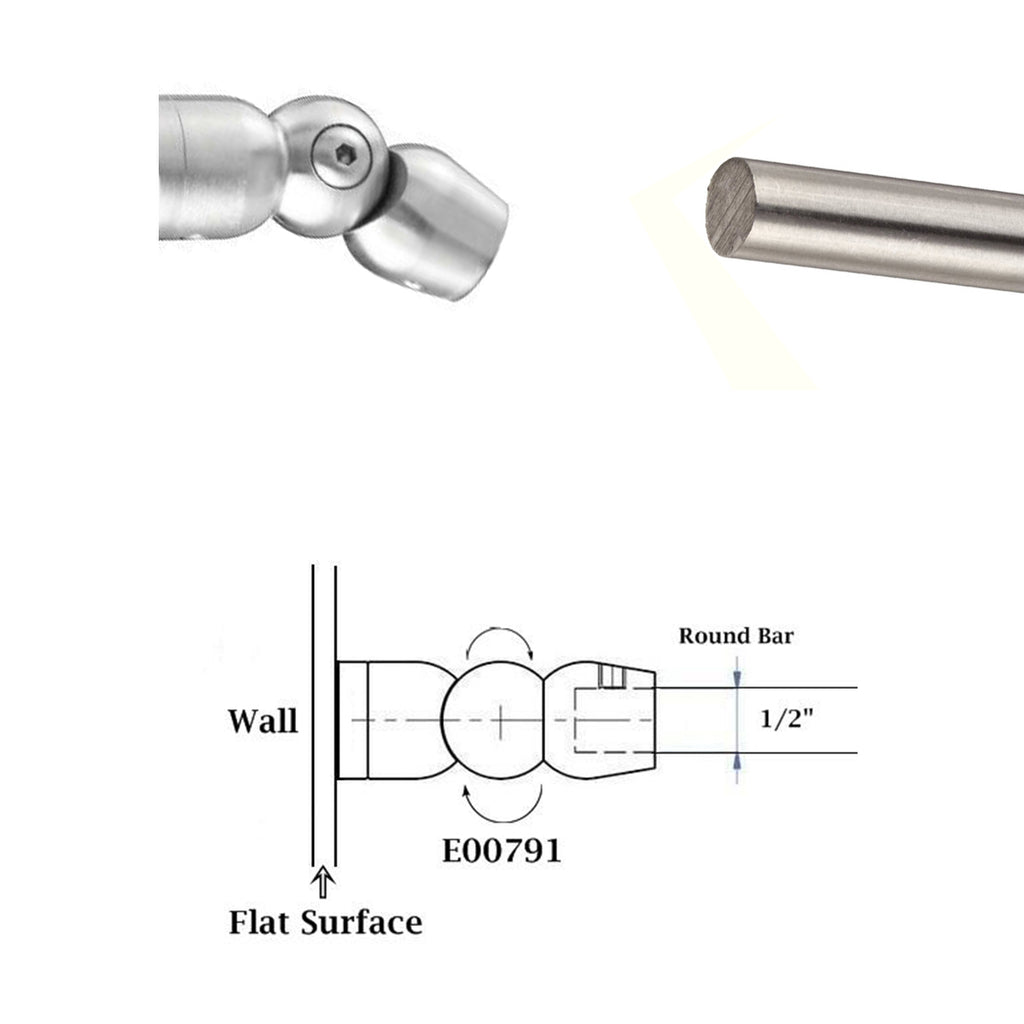

This E00791 Pivotable Round Bar Connector For Flat Surface will firmly attach the end of a 1/2" round bar to any flat surface for example: square post , ceiling or walls.

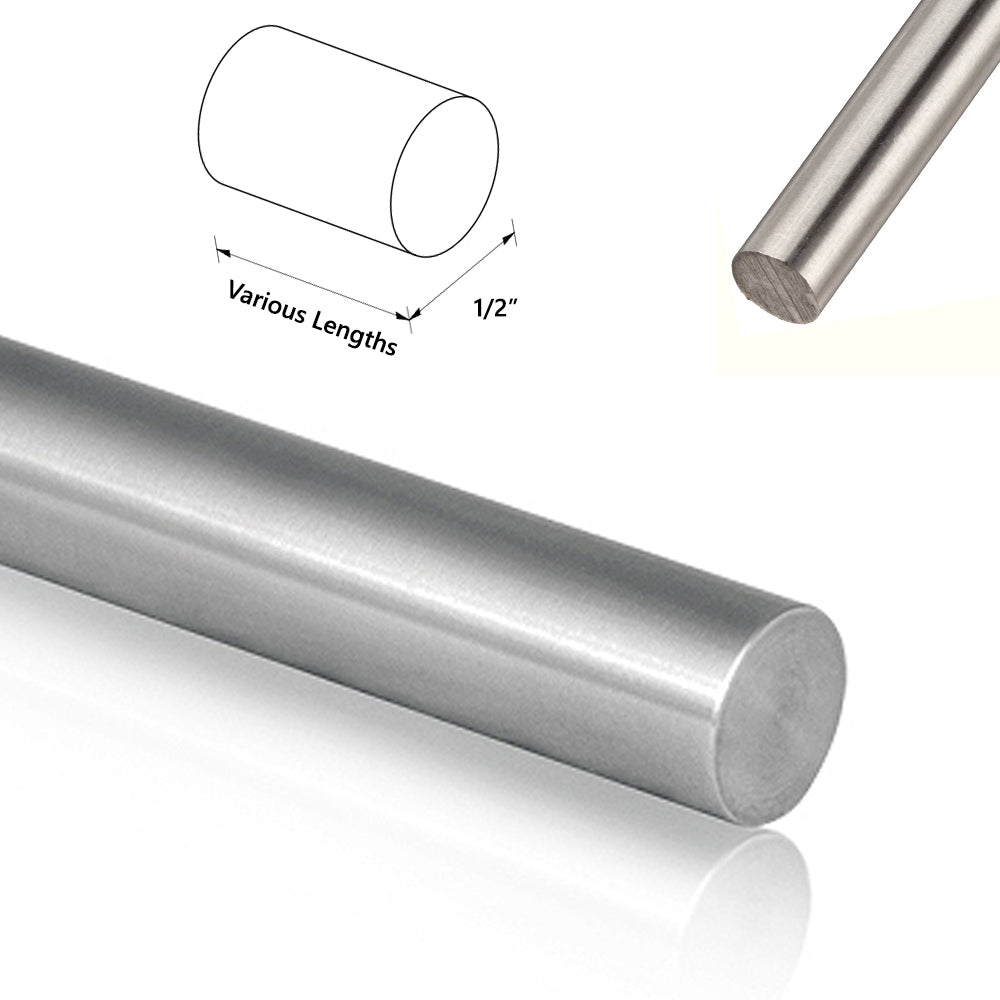

• Designed to meet and hold our 1/2" (12mm) stainless steel round bars

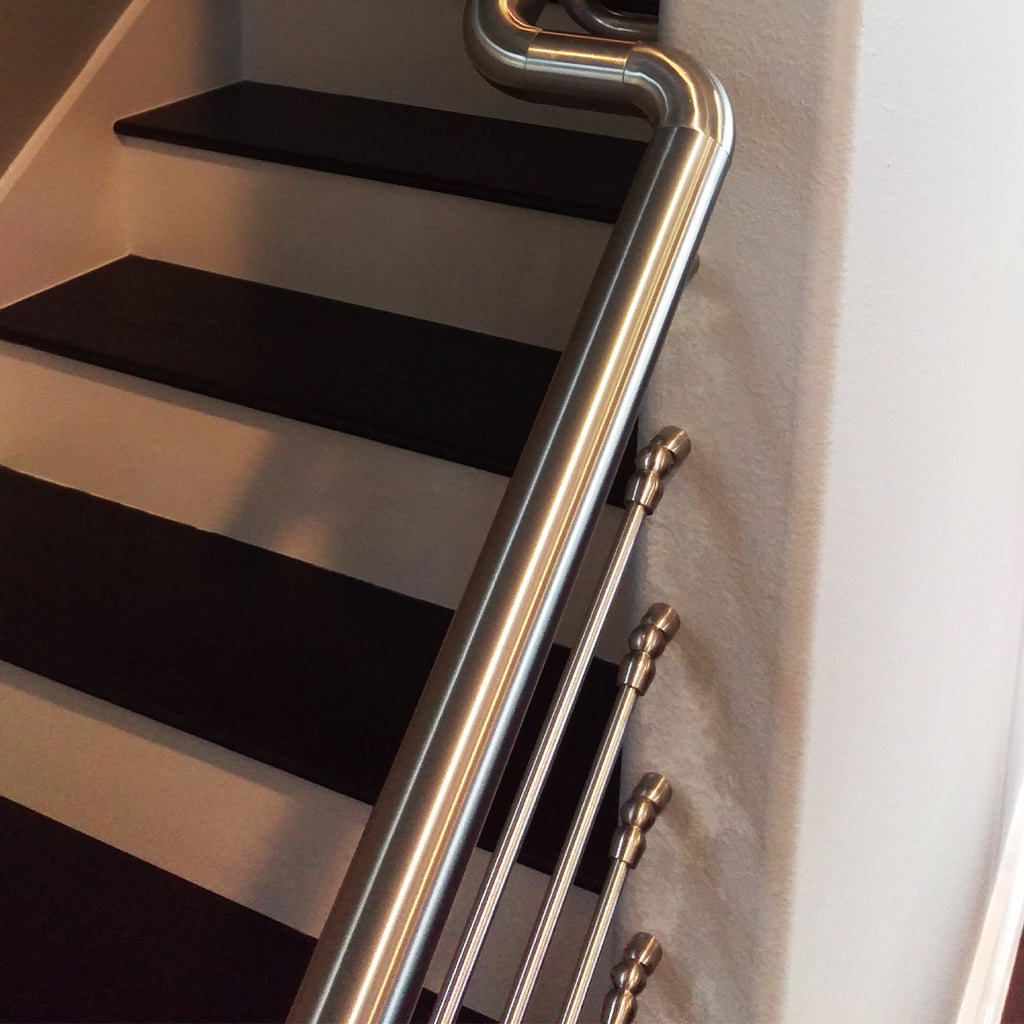

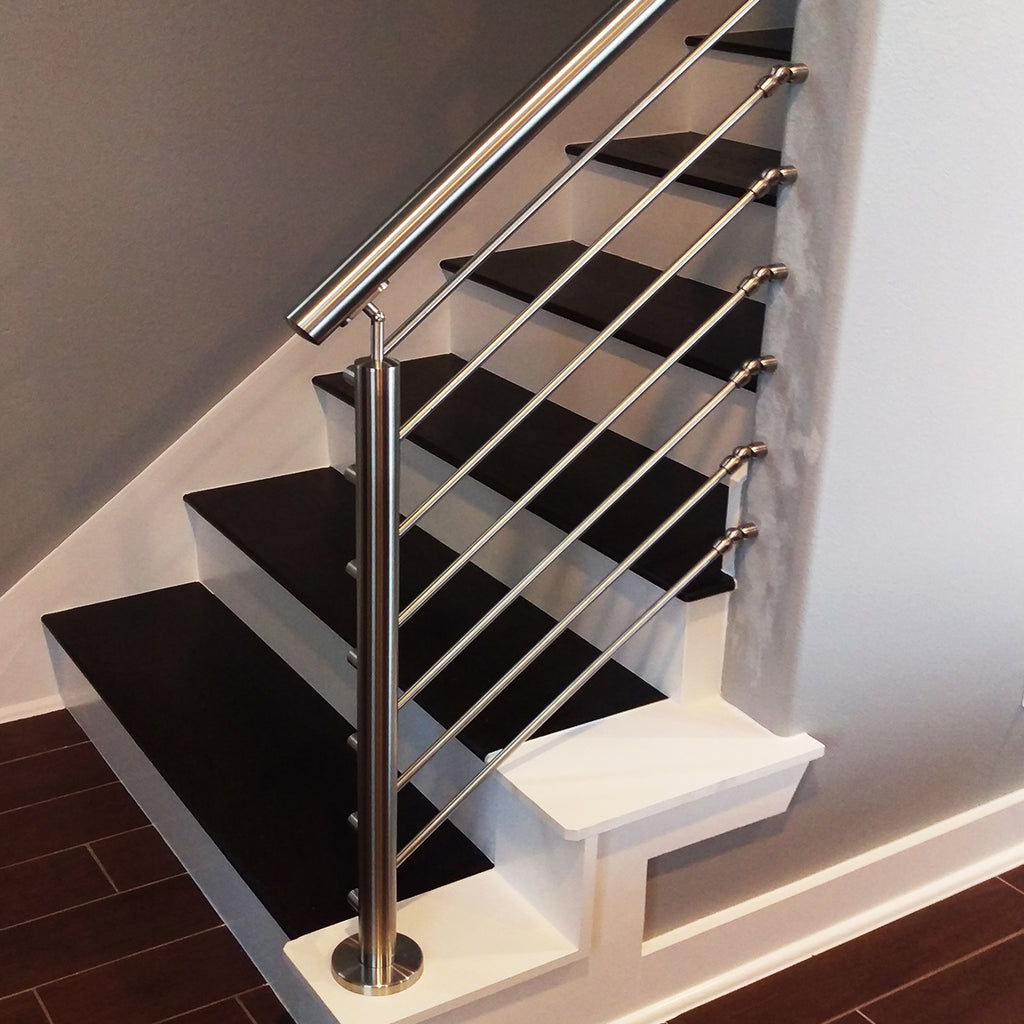

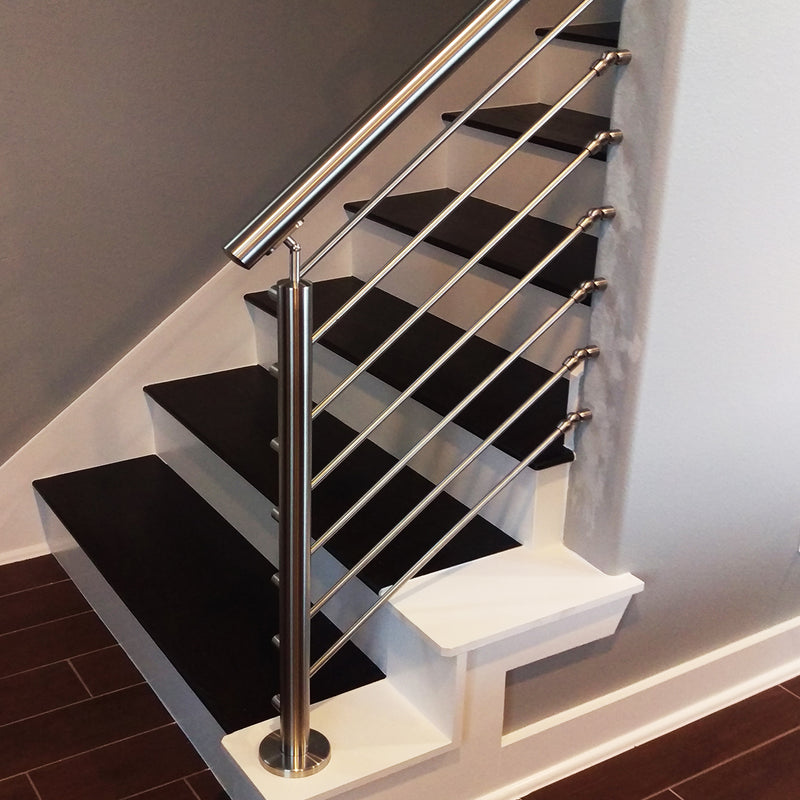

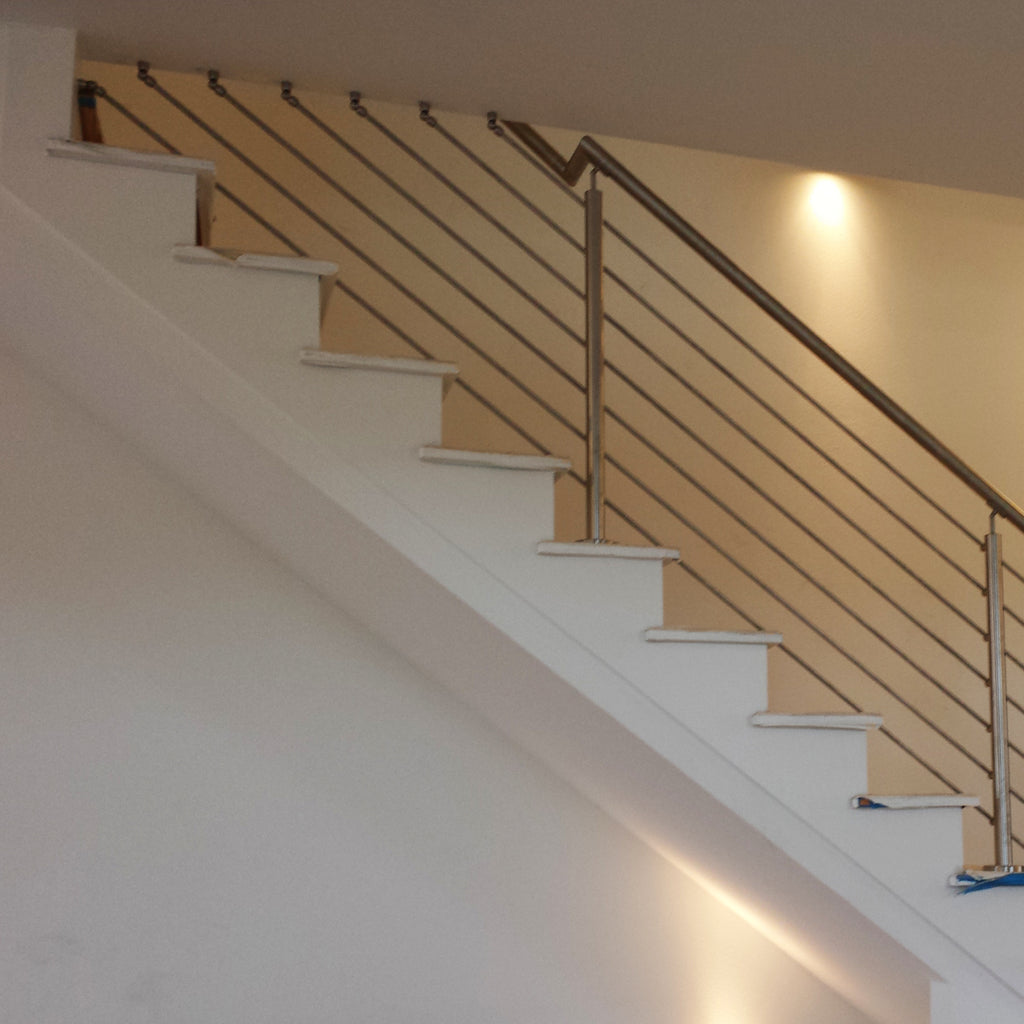

• Ideal to connect round bars to square newels, walls, ceiling etc.
• Adjustment of 90° in each direction
• 316 marine grade quality suitable for interior or exterior use
• 7/8" external diameter - 2-3/8" Height
• 2 Hexagonal socket set screw
• Quick and easy to install
• Satin/Brushed finish

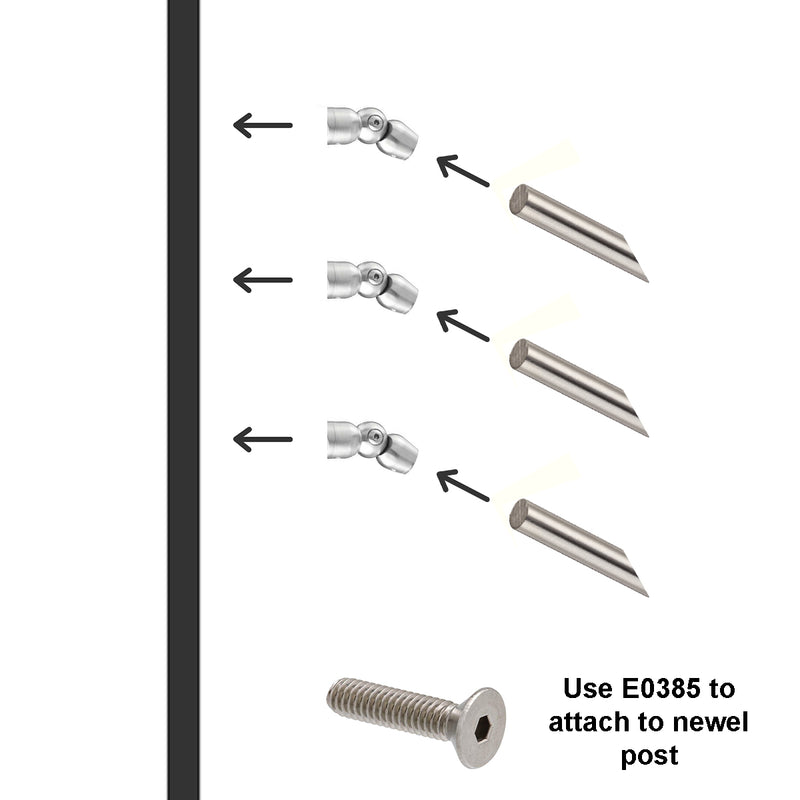

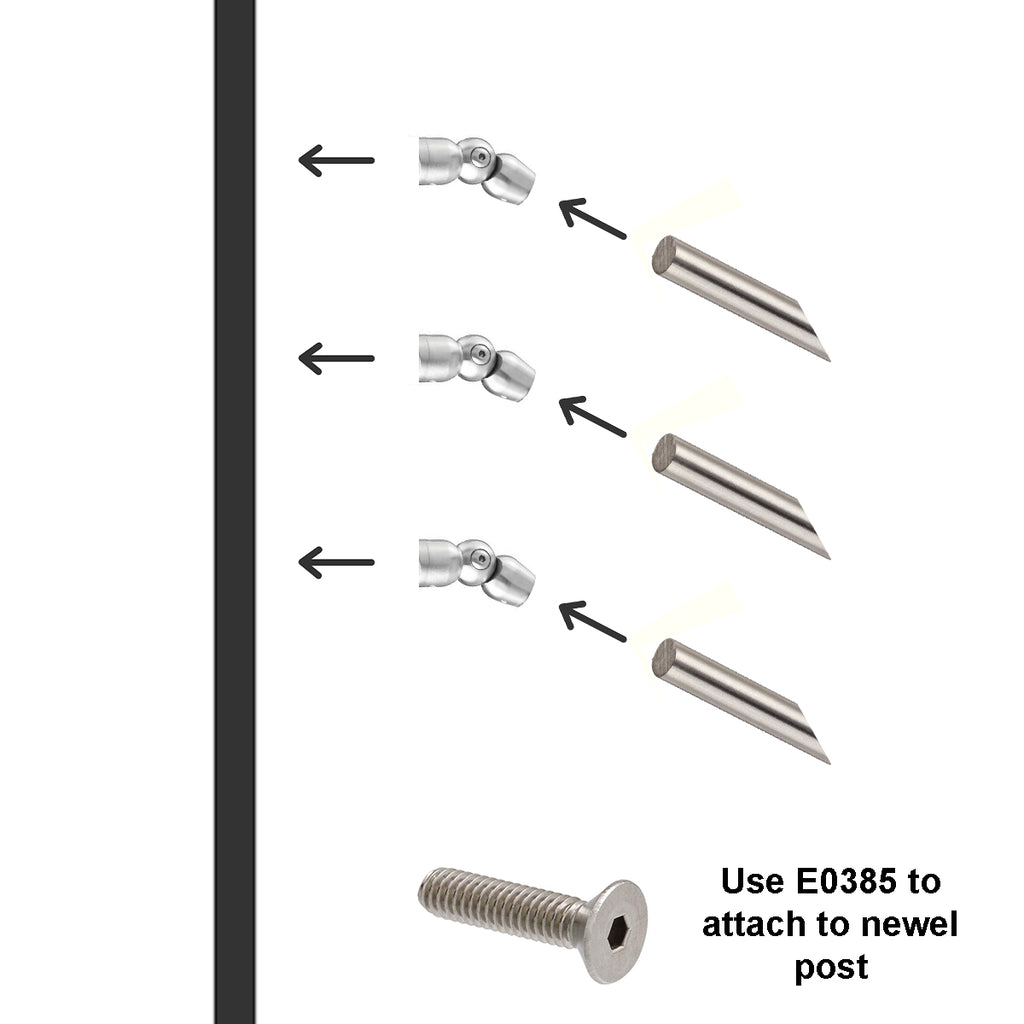

Installation:

1. Mark hole position.
2. Drill a 11/64" diameter hole.
3. Tap hole with a M5 tap if needed.
4. If attaching to wall or wood use wood screws.
5. Attach pivotable connector base to surface.
6. Insert rod into connector.
7. Tighten hex head set screws to secure connector and rod.
