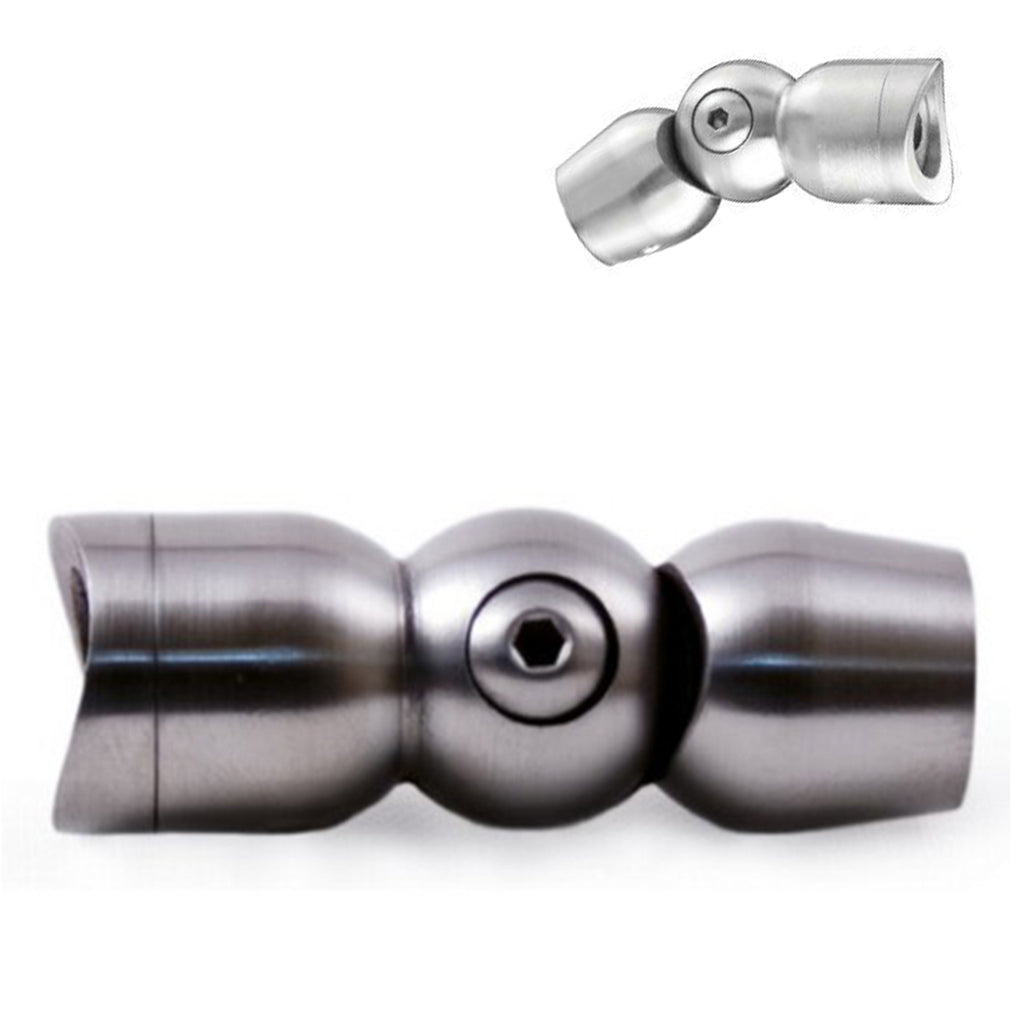

E0074 Pivotable Round Bar Connector for Round Newel Post

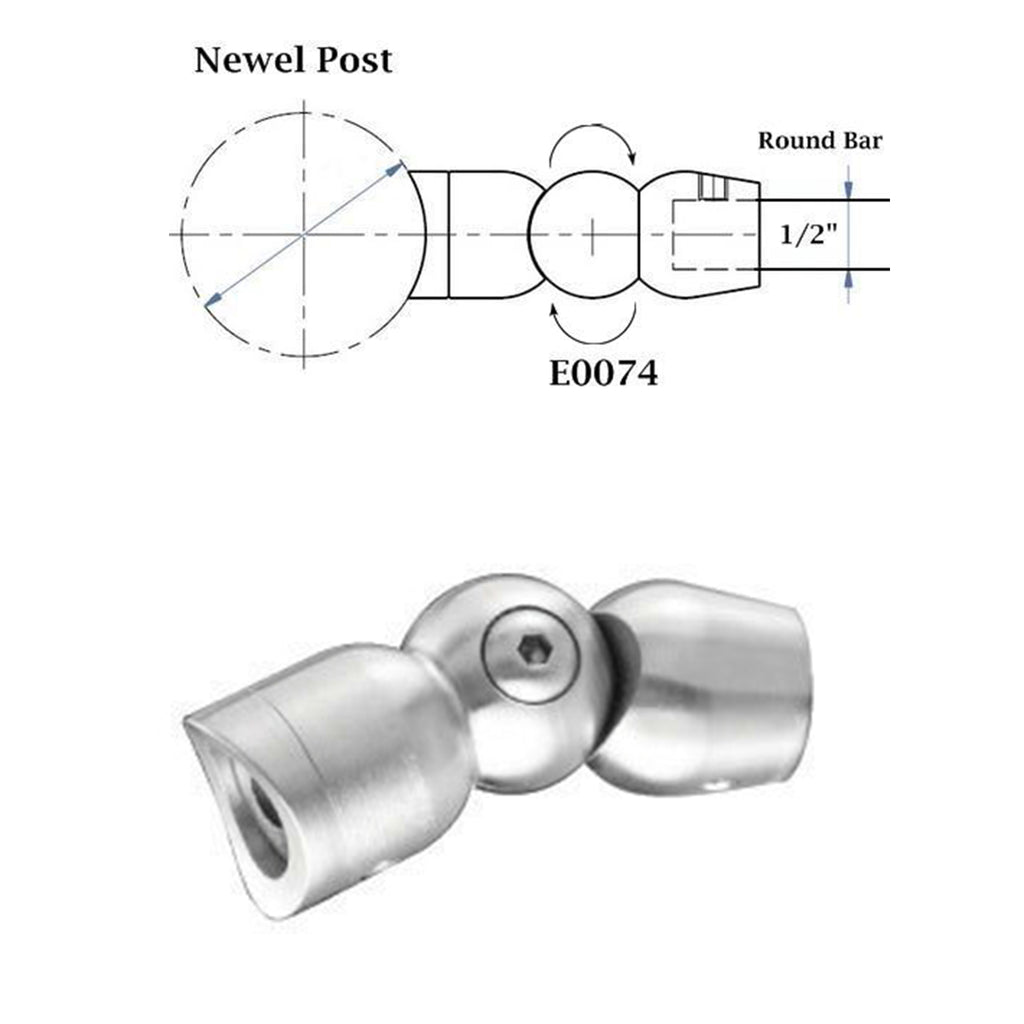

This E0074 Pivotable Round Bar Connector for Round Newel Post will firmly attach the end of a 1/2" stainless steel round bar to a round newel post.

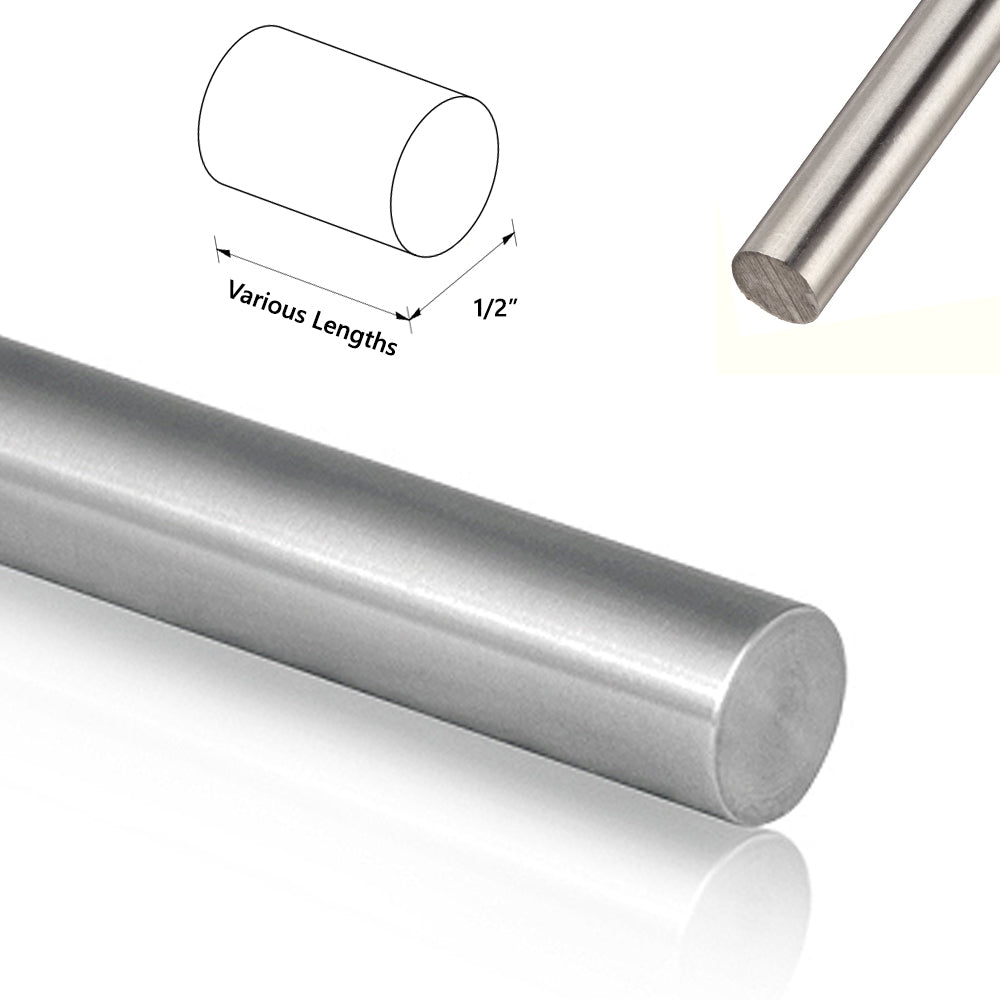

• Designed to meet and hold our 1/2" (12mm) stainless steel round bars

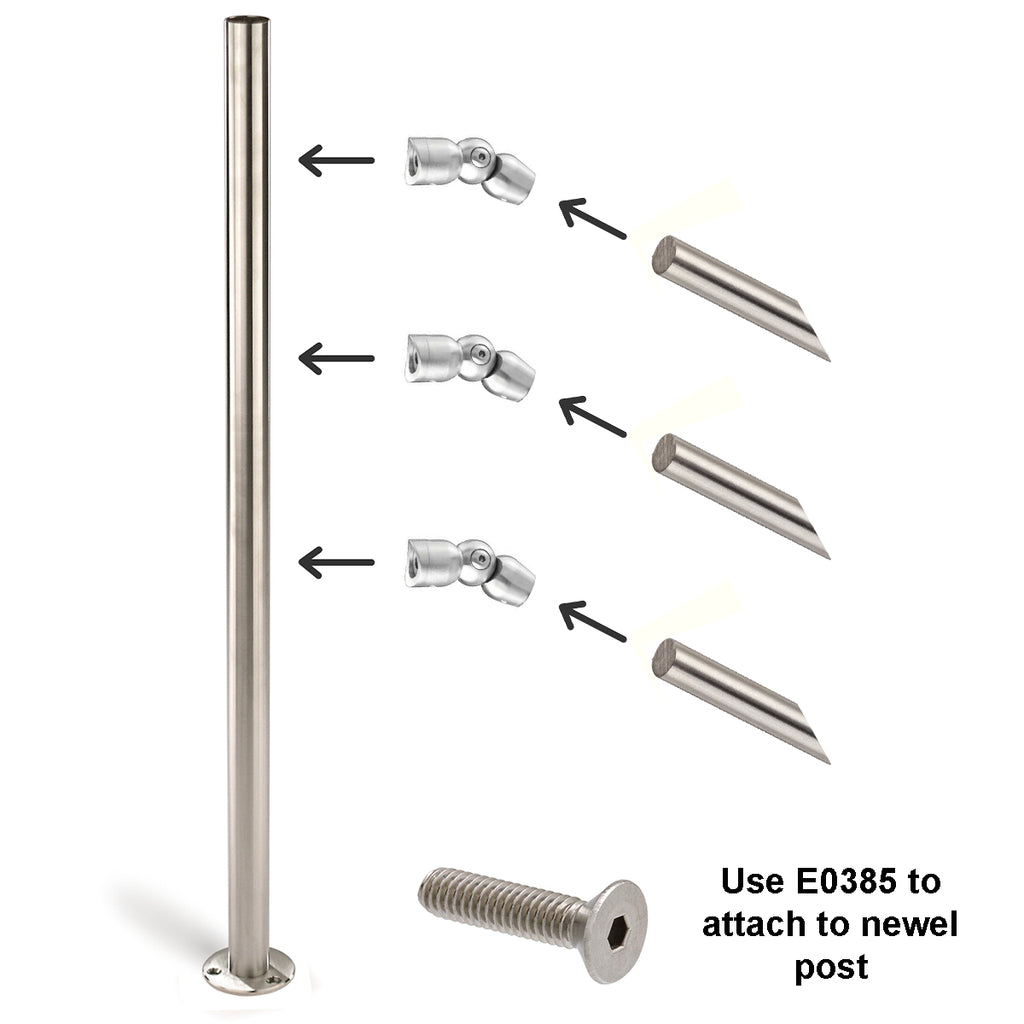

• Ideal to connect round bars to newel posts

• Adjustment of 90° in each direction
• 316 marine grade quality suitable for interior or exterior use
• 7/8" external diameter - 2-3/8" Height
• 2 Hexagonal socket set screw
• Quick and easy to install
• Satin/Brushed finish

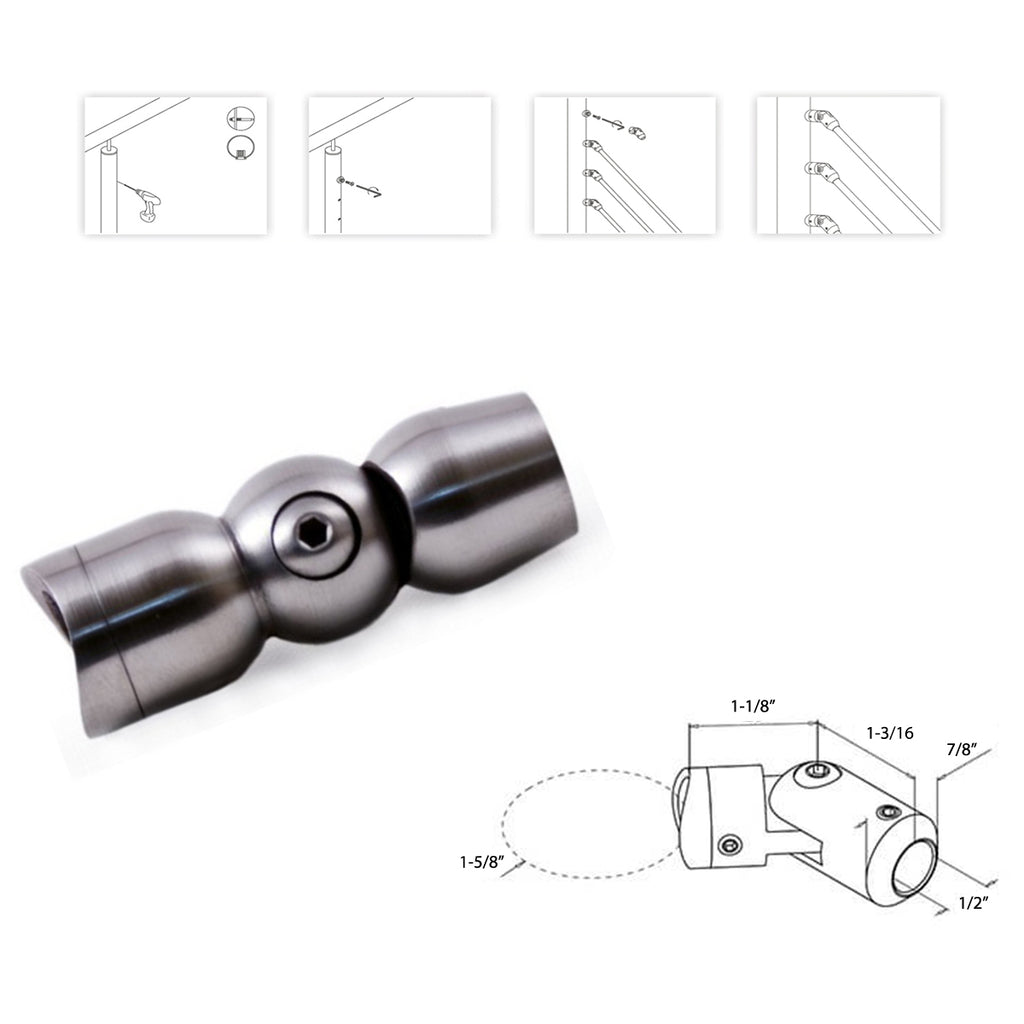

Installation:

1. Mark hole position.
2. Drill a 11/64" diameter hole.
3. Tap hole with a M5 tap.
4. Attach pivotable connector base to round newel post.
5. Insert rod into bar holder.
6. Tighten hex head set screws to secure connector and rod.
