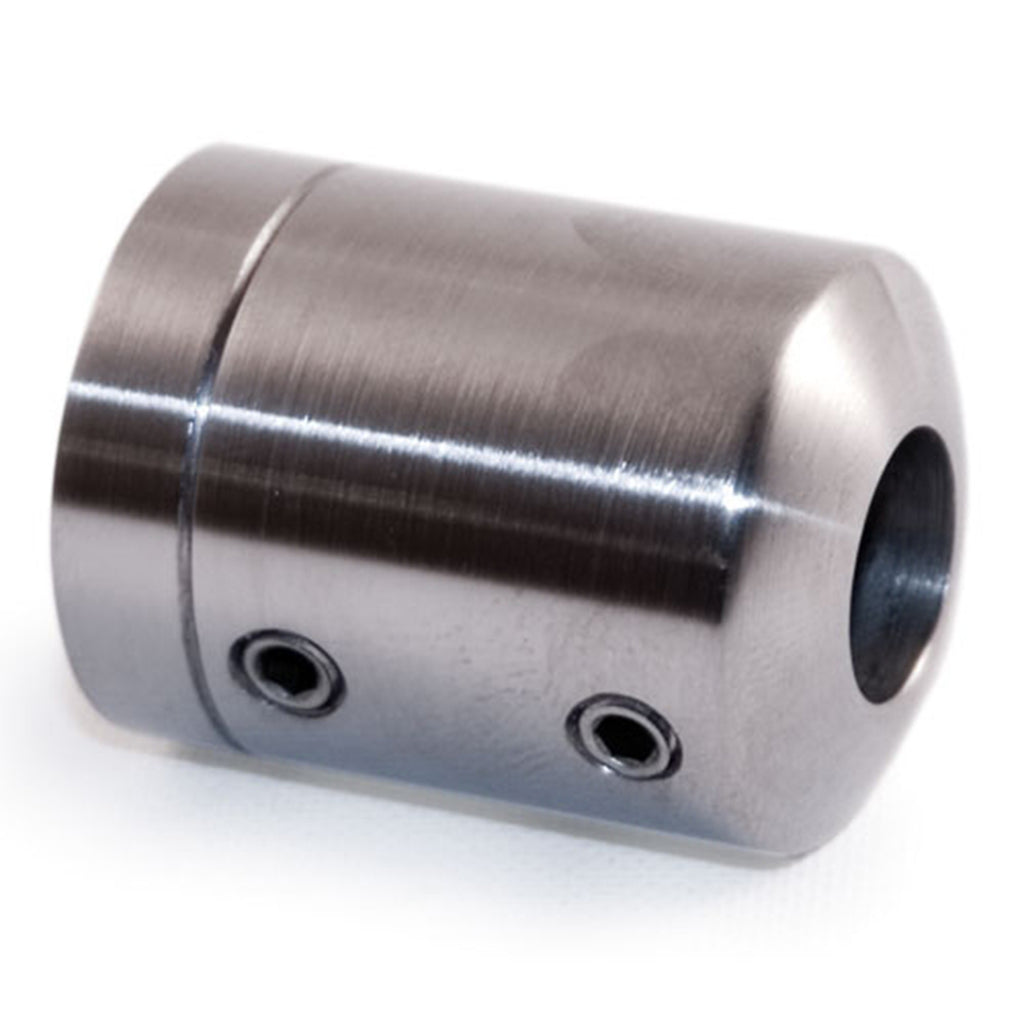

E40651 In-Line Round Bar Holder for Flat Surface

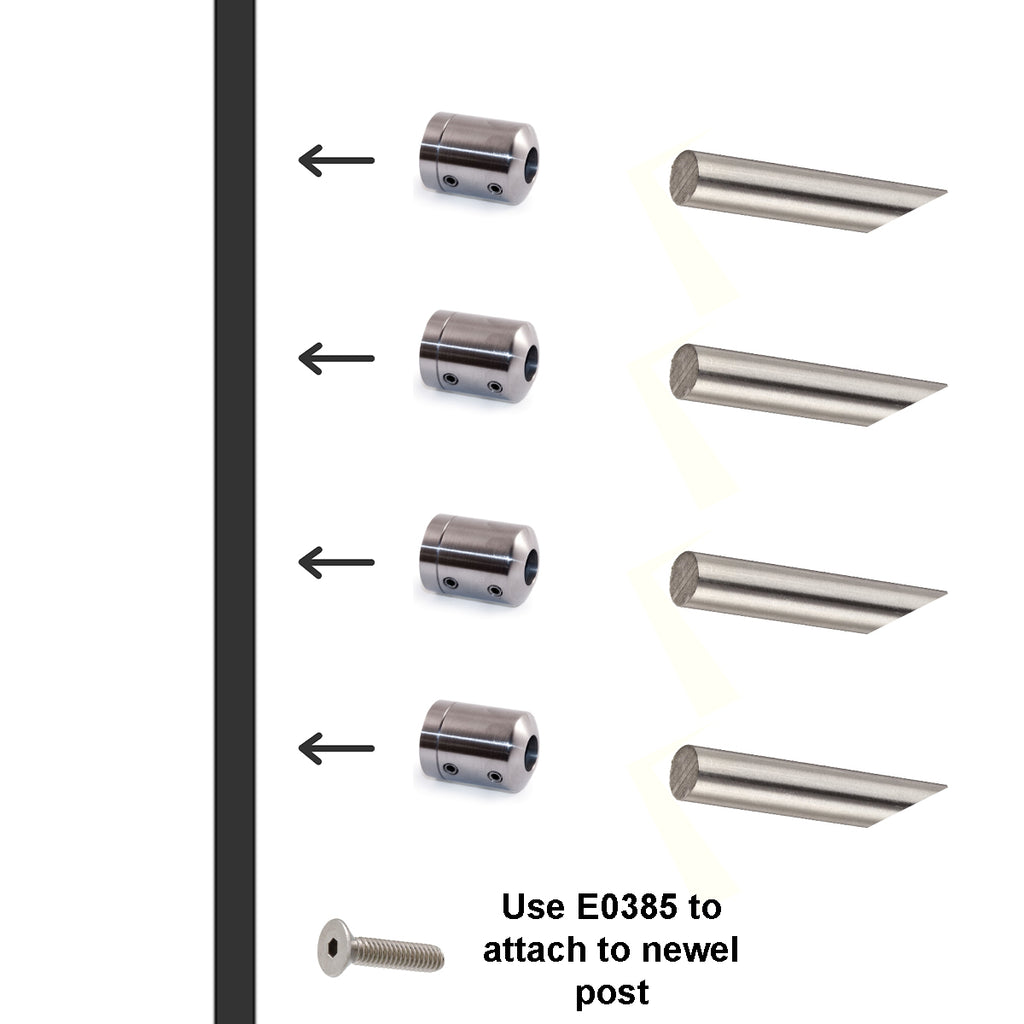

The E40651 In-Line Round Bar Holder for Flat Surface can be used as a start or termination between a newel post, ceiling or walls. It also works as in-line holder for square newel post, walls and any flat surface.

• Designed to meet and hold our 1/2" (12mm) stainless steel round bars
• 316 marine grade quality suitable for interior or exterior use
• 7/8" diameter - 1-3/8" height
• 2 Hexagonal socket set screw
• Satin/Brushed finish
• Drill required for installation

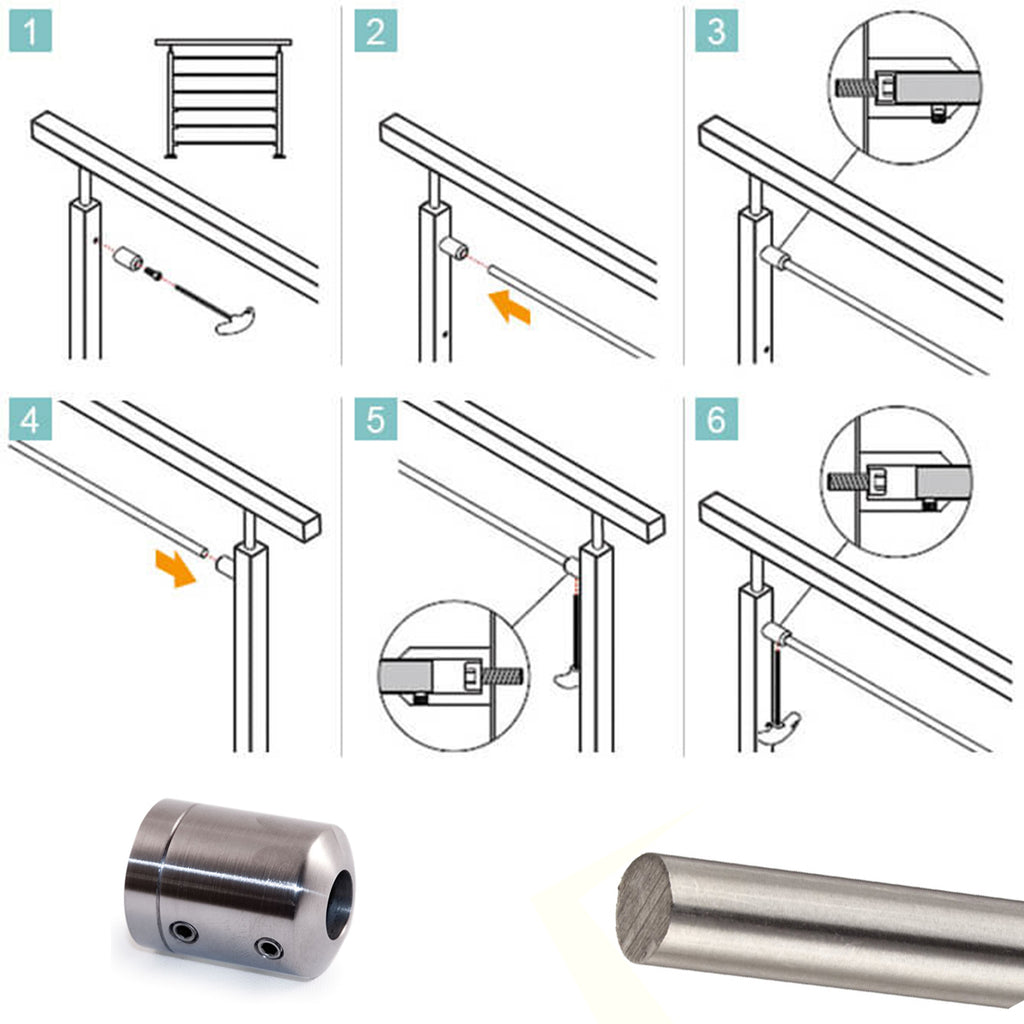

Installation:

1. Mark hole position.
2. Drill a 11/64" diameter hole.
3. Tap hole with a M5 tap if needed.
4. If attaching to wall or wood use wood screws.
5. Attach flat bar holder base to surface.
6. Insert rod into bar holder.
7. Tighten hex head set screws to secure bar holder and rods.
