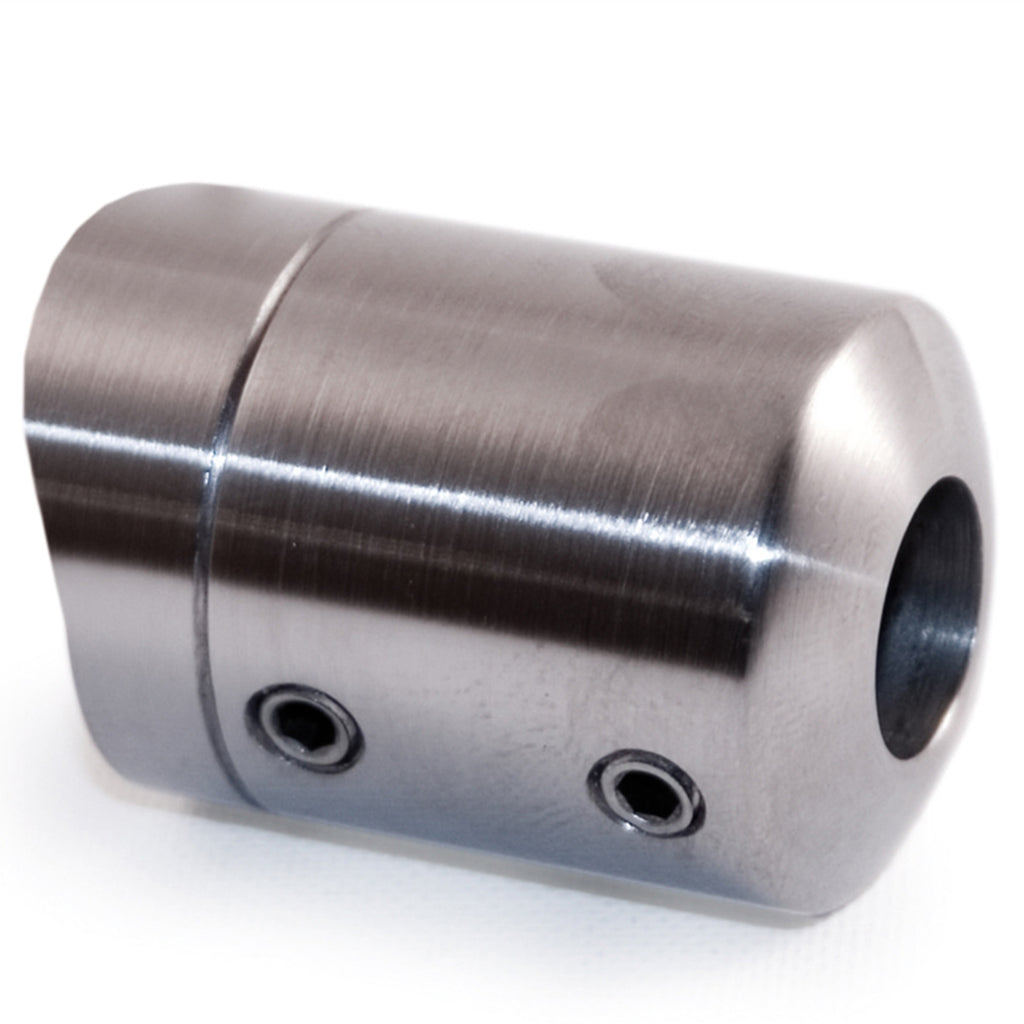

E41651 In-Line Round Bar Holder For Round Newel Post

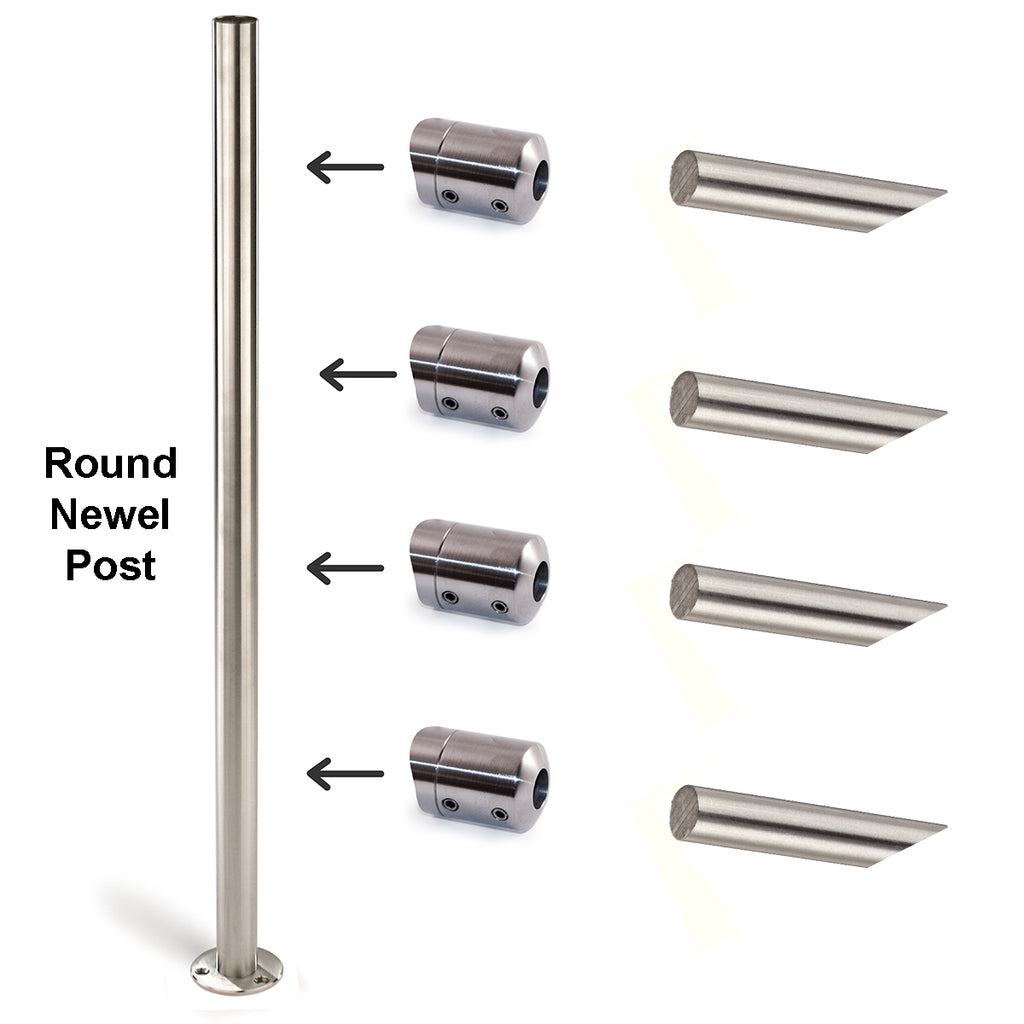

The E41651 In-Line Round Bar Holder For Round Newel Post it's used to install stainless steel 1/2" round bars in-line between round newel posts.

• Designed to meet and hold our 1/2" (12mm) stainless steel round bars
• This piece is ideal for our 1-5/8" round Newel Posts
• 316 marine grade quality suitable for interior or exterior use
• 7/8" diameter - 1-3/8" height
• 2 Hexagonal socket set screw
• Satin/Brushed finish
• Drill required for installation
• Requires one E0385 screw to attach

Installation:

1. Mark hole position.
2. Drill a 11/64" diameter hole.
3. Tap hole with a M5 tap if needed.
4. If attaching to wall or wood use wood screws.
5. Attach flat bar holder base to surface.
6. Insert rod into bar holder.
7. Tighten hex head set screws to secure bar holder and rods.
